Product Description

EKKO Stand-up Rider Forklift, 4000 lb Cap., 189" Lift Ht. 48V - EK18RFL

Stand-Up Efficiency: Lift 4000 lb to 189" in Narrow-Aisle Environments Electric Rider Forklift

Overview

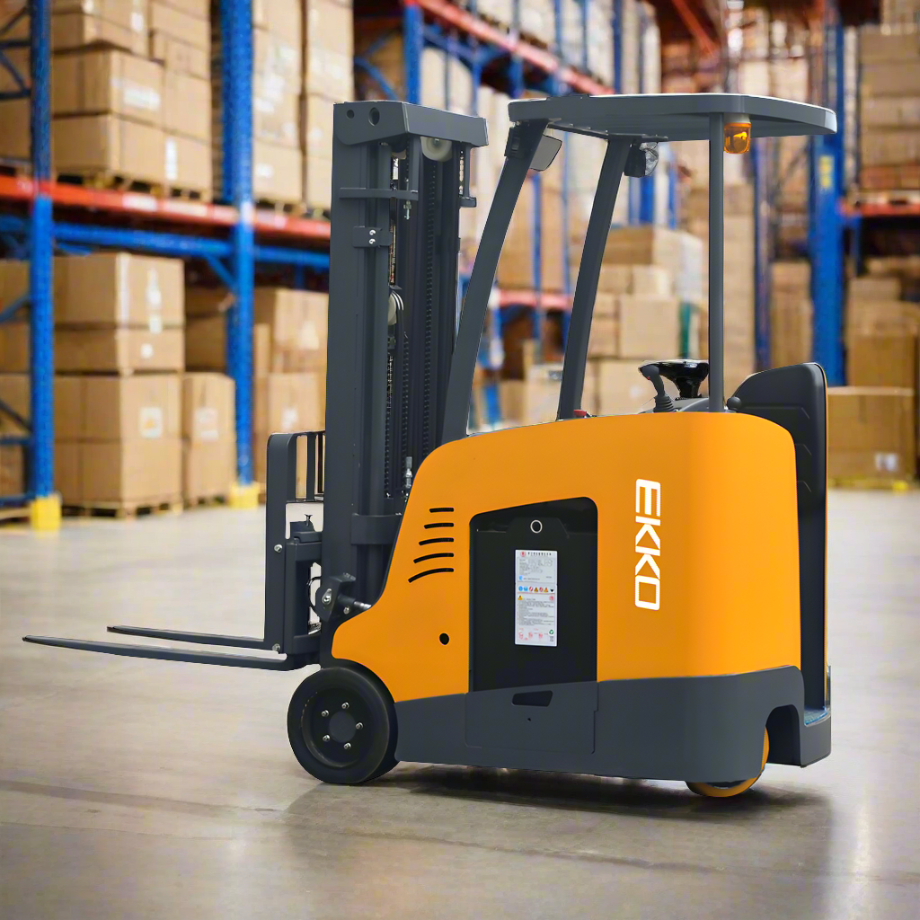

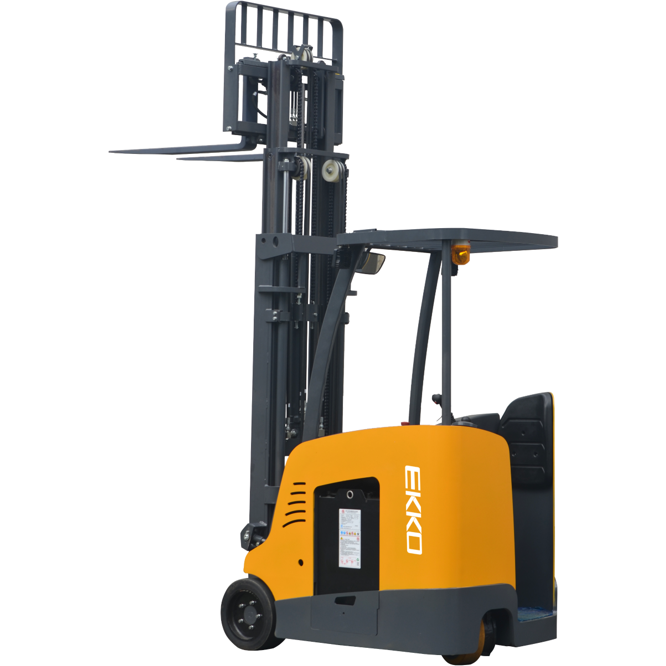

The EKKO EK18RFL is an electric-powered stand-up rider forklift designed for high-cycle warehouse environments where speed, visibility, and maneuverability are critical. The stand-up configuration allows operators to enter and exit the vehicle quickly at every stop ideal for operations with frequent short-distance moves and multi-drop picking routes.

Benefits

  • Speed up multi-stop operations stand-up design lets operators mount and dismount in seconds, dramatically reducing time wasted at each stop compared to seated forklifts.
  • Lift and position loads precisely 4000 lb capacity and 189" lift height cover the full range of warehouse racking configurations.
  • Improve operator visibility elevated standing position provides a clear, unobstructed sightline to loads and surrounding personnel for safer operation.
  • Navigate tight aisles with ease compact rear-wheel steering turns on a dime, enabling efficient operation in narrow-aisle layouts.
  • Invest with confidence backed by a 3-Year Limited Warranty and EKKO's North American parts and service network.

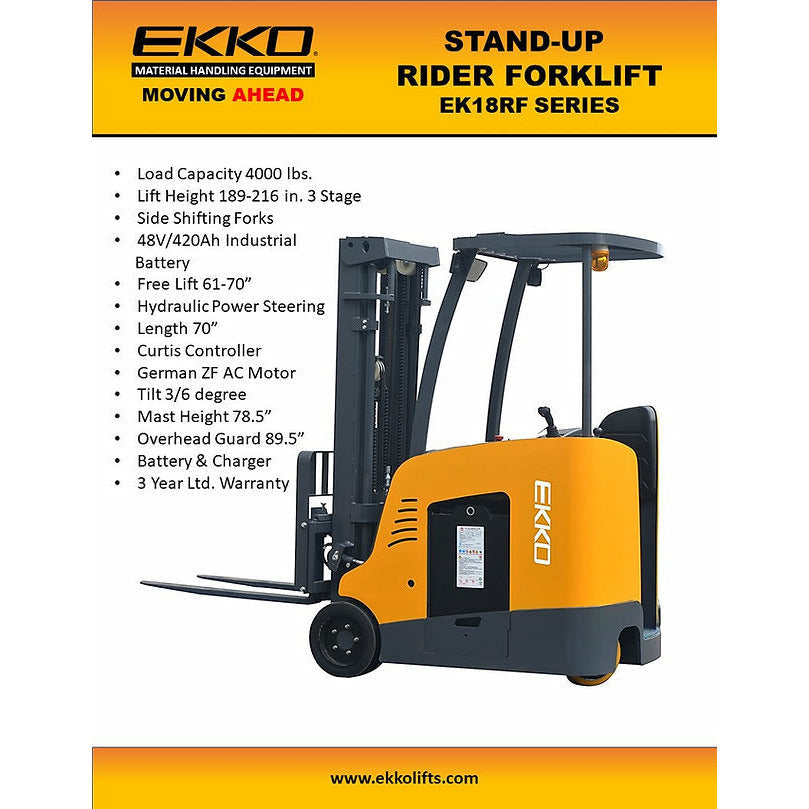

Features

  • Load Capacity 4000 lb
  • Raised Height 189" (15.75ft)
  • Side Shifting Forks
  • Adjustable Forks 9.4-35.6"
  • Fork Length 45.3€œ
  • Hydraulic Steering
  • Curtis Instrument Controller
  • German AC Drive Motor
  • Battery 48V/420Ah (included)
  • Charger 48V/65A 480V
  • Solid Cushion Load Tires
  • Polyeurathane Drive Tires
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger 48V/65A

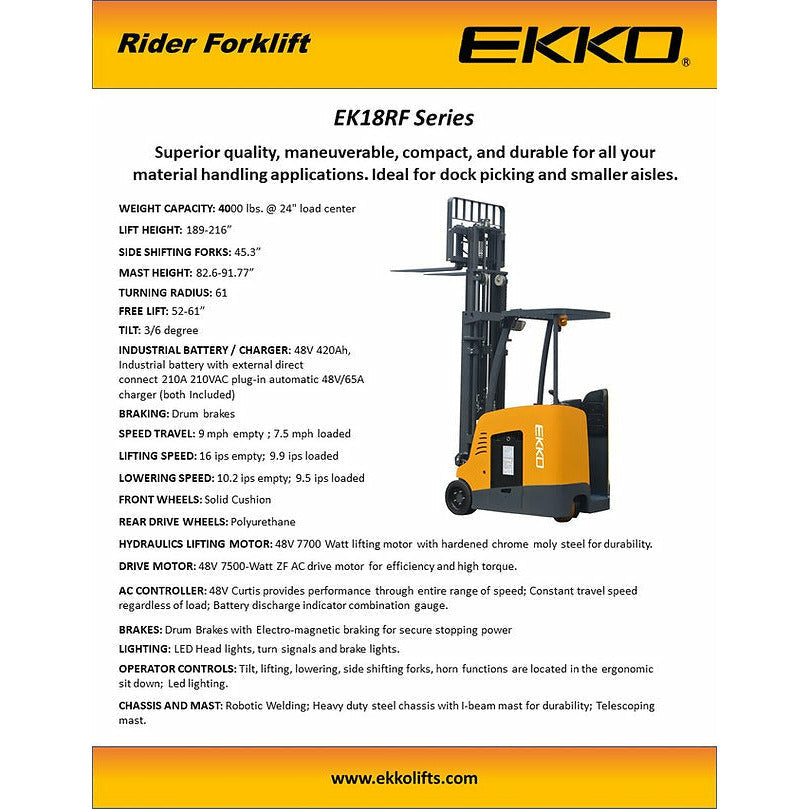

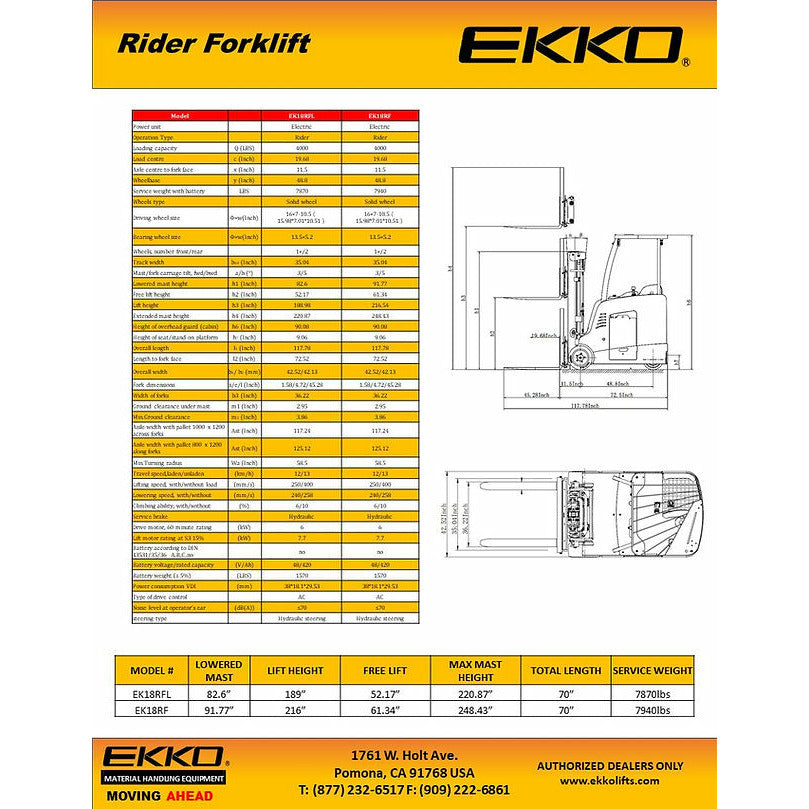

Specifications

Model

EK18RFL

Power unit

Electric

Operation Type

Rider

Loading capacity

Q (LBS)

4000

Load centre

c (Inch)

19.68

Axle centre to fork face

x (Inch)

11.5

Wheelbase

y (Inch)

48.8

Serviceweightwithbattery

LBS

7870

Wheels type

Solid wheel

Driving wheel size

Φ×w(Inch)　

16×7-10.5（15.98*7.01*10.51）

Bearing wheel size

Φ×w(Inch)　

13.5×5.2

Wheels, number front/rear

1×/2

Track width

b10 (Inch)

35.04

Mast/fork carriage tilt, fwd/bwd

a/b (°)

3/5

Lowered mast height

h1 (Inch)

82.6

Free lift height

h2 (Inch)

52.17

Lift height

h3 (Inch)

188.98

Extended mast height

h4 (Inch)

220.87

Height of overhead guard (cabin)

h6 (Inch)

90.08

Height of seat/stand-on platform

h7 (Inch)

9.06

Overall length

l1 (Inch)

117.78

Length to fork face

l2 (Inch)

72.52

Overall width

b1/ b2 (mm)

42.52/42.13

Fork dimensions

s/e/l (Inch)

1.58/4.72/45.28

Width of forks

b3 (Inch)

36.22

Ground clearance under mast

m1 (Inch)

2.95

Min.Ground clearance

m2 (Inch)

3.86

Aisle width with pallet 1000 x 1200 across forks

Ast (Inch)

117.24

Aisle width with pallet 800 x 1200 along forks

Ast (Inch)

125.12

Min.Turning radius

Wa (Inch)

58.5

Travel speed,laden/unladen

(km/h)

12/13

Lifting speed, with/without load

(mm/s)

250/400

Lowering speed, with/without

(mm/s)

240/258

Climbing ability, with/without

(%)

6/10

Service brake

Hydraulic

Drive motor, 60-minute rating

(kW)

6

Lift motor rating at S3 15%

(kW)

7.7

Battery according to DIN 43531/35/36 A,B,C,no

no

Battery voltage/rated capacity

(V/Ah)

48/420

Battery weight (± 5%)

(LBS)

1570

Power consumption VDI

(mm)

38*18.1*29.53

Type of drive control

AC

Noise level at operator€˜s ear

(dB(A))

‰¤70

steering type

Hydraulic steering

Manufacturer Warranty

This EKKO unit is covered by the EKKO 3-Year Limited Warranty: three (3) years on the frame, forks and mast; one (1) year on the transmission/gearbox, traction and steering motors, controllers and charger; one (1) year on lead-acid batteries and chargers (lithium batteries carry up to five (5) years on select models); and thirty (30) days on wear items such as tires, bulbs, lights, rubber parts and seals. LPG and diesel models: frame, forks and mast for 3 years or 6,000 hours and the engine for 2 years or 4,000 hours, whichever comes first. Coverage begins when the unit is purchased from the authorized dealer, is non-transferable, applies to the original purchaser under normal operating conditions, and excludes labor unless pre-approved by EKKO, normal wear, abuse, improper maintenance or unauthorized modification.
