Product Description

EKKO Fork-Over Semi-Electric Stacker | 119" Lift Height | 3300 lb Capacity | EA15C


Affordable Power: Semi-Electric Stacker Lifting Up to 3300lb at 119.3" No Forklift License Required

Overview

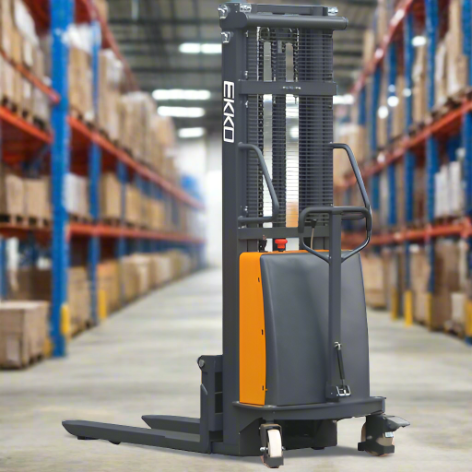

The EKKO EA15C is a semi-electric straddle stacker that combines electric-powered lifting with manual push operation giving your team a cost-effective, practical solution for pallet stacking without the price tag of a fully powered unit. Ideal for lower-frequency stacking tasks, it delivers reliable powered lift every time, while keeping total cost of ownership low.

Benefits

  • Get the lift power you need at an accessible price point electric-powered mast handles the hard part, lifting loads up to 3300lb to 119.3" without strain.
  • Simplify operator training intuitive controls and manual drive make this the easiest stacker to deploy; no specialized certification required.
  • Reduce equipment costs semi-electric design delivers essential powered stacking at a significantly lower upfront investment than full-electric models.
  • Handle everyday stacking tasks independently free up your larger equipment for heavier lifts while this unit handles routine pallet stacking.
  • Invest with peace of mind backed by EKKO's 3-Year Limited Warranty and North American service support.

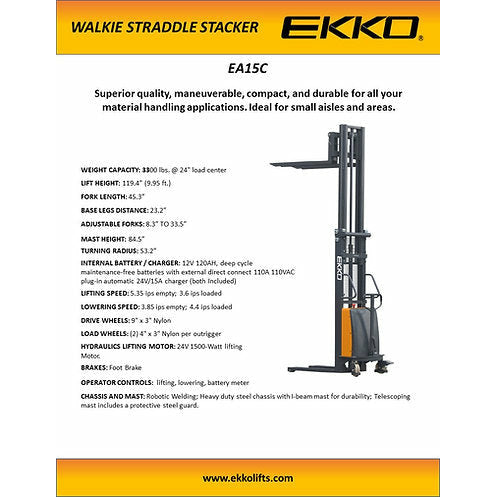

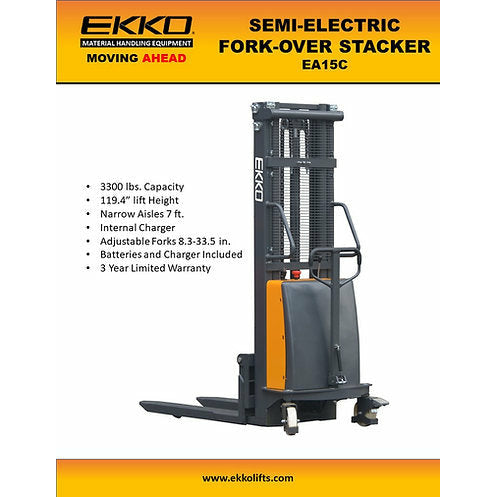

Features

  • Load Capacity 3300lbs.
  • Raised Height 119.3" (9.95ft)
  • Fork Length 45.3"
  • Power Lifting
  • Manual Drive
  • Adjustable Forks
  • InternalCharger 12V/20AIncluded
  • Battery 12V 120Ah Included
  • Ergonomic Handle
  • Steel Construction
  • Robotic Welding

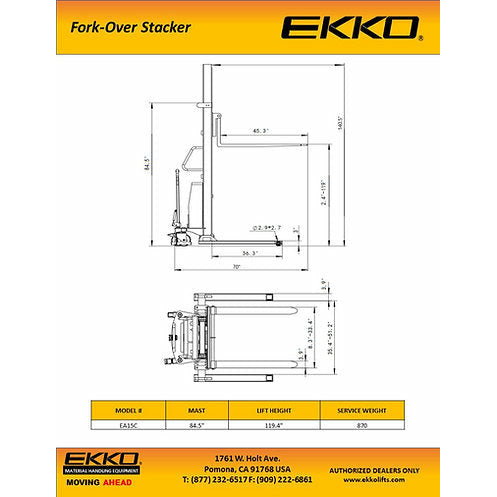

Specifications

Model

EA15C

Load Capacity

(lb)

3300

Lifting height Max.

(in)

119.4

Load center distance

(in)

24

Fork length

(in)

45.3

Single fork width

(in)

5.9

Overall fork width

(in)

24.5

Lowered fork height

(in)

2.4

Fixed leg length

(in)

45.3

Fixed leg width, single

(in)

5.9

Width between legs

(in)

12.75

Turning radius

(in)

53.2

Overall length

(in)

73

Overall width max

(in)

59

Extended mast height

(in)

140.5

Lowered mast height

(in)

81.8

Battery Voltage

(V/Ah)

12V/120Ah

Charger

(V/A)

12V/20A

Lift Motor

(V/W)

DC 12V/1500W

Service Weight

(lb)

870
