Product Description

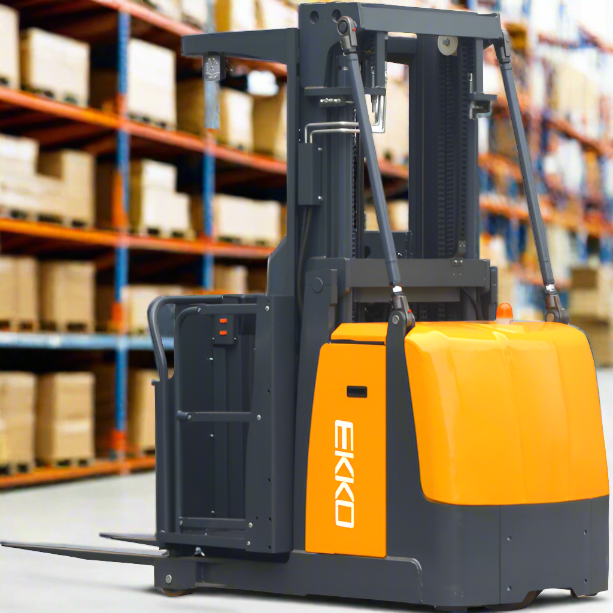

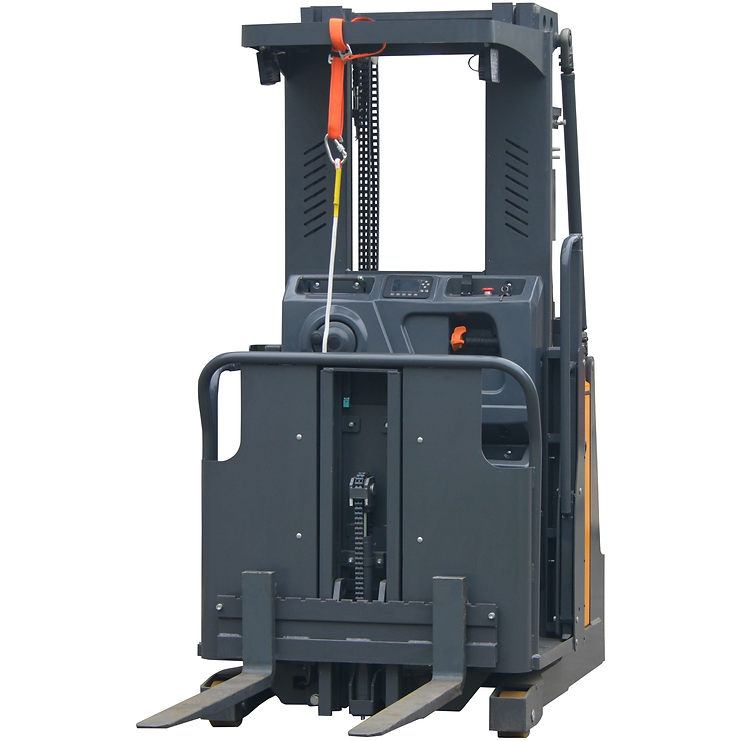

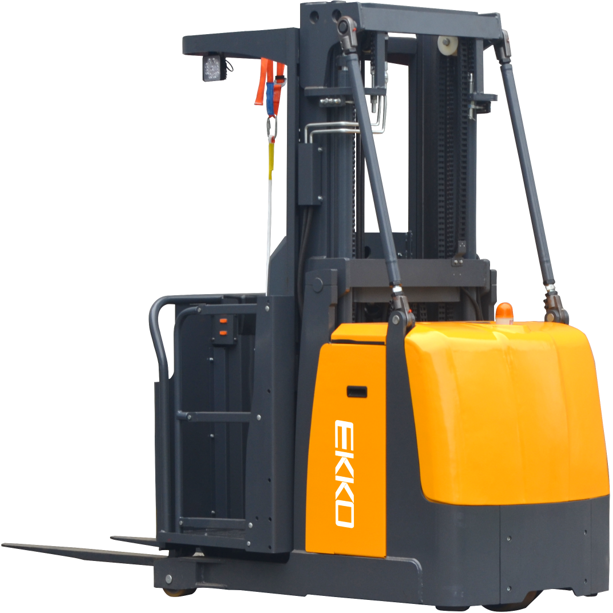

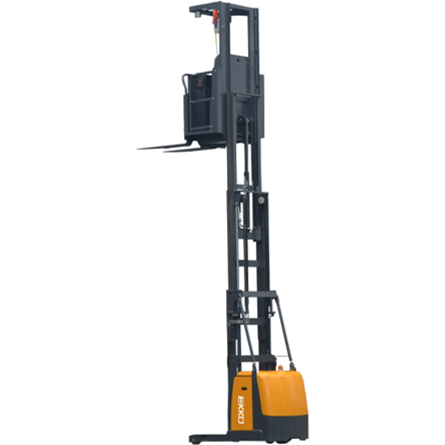

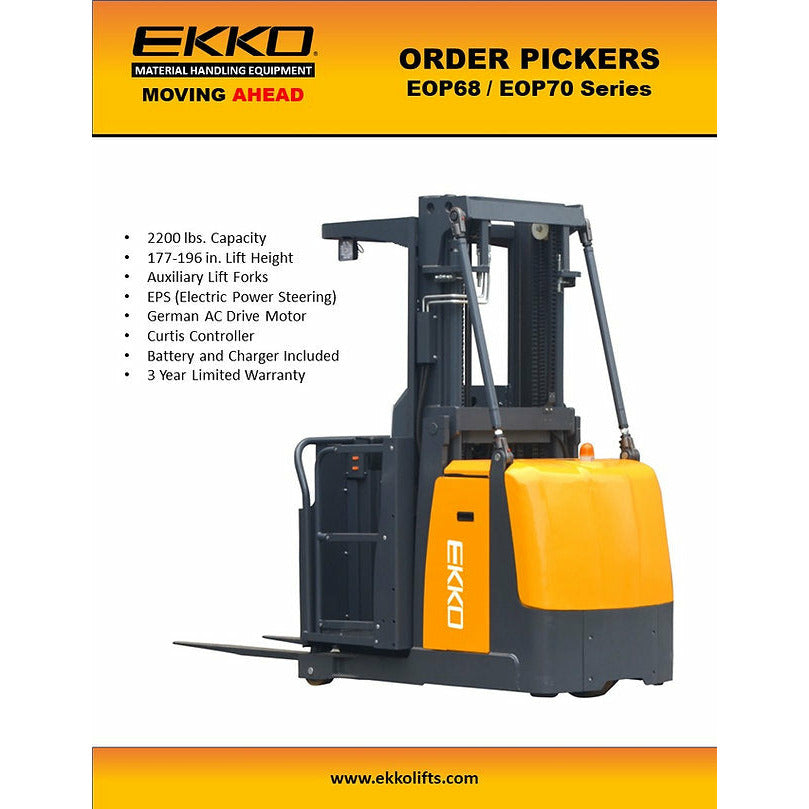

EKKO Order Picker 2200 lb Cap., 177" Lift - EOP68


Pick Orders Faster at Heights Up to 177" Ergonomic, Lead-Acid-Powered Order Picker

Overview

The EKKO EOP68 is an electric order picker engineered for high-frequency order fulfillment in distribution centers, warehouses, and retail stockrooms. Designed to elevate the operator along with the load, it allows efficient picking at heights that are impossible from the ground dramatically increasing throughput and reducing walking time.

Benefits

  • Double your pick rates operator platform rises with the load up to 177", eliminating time spent repositioning ladders or carts.
  • Reduce picker fatigue ergonomic controls and a stable operator platform let your team work comfortably across long shifts without strain.
  • Maximize floor space utilization compact footprint and tight turning radius allow operation in narrow aisles and high-density storage layouts.
  • Lower labor costs faster, more efficient picking means fewer worker-hours per order, improving your cost-per-pick metrics.
  • Invest with confidence backed by a 3-Year Limited Warranty with dedicated EKKO parts and service support across North America.

Features

  • Load Capacity 2200 lb
  • Raised Height 177" (14.75 ft.)
  • Adjustable Forks
  • Auxiliary Fork
  • Triple Mast
  • Curtis Instrument Controller
  • EPS (Electronic Power Steering)
  • German AC Drive Motor
  • Battery 24V/280Ah
  • 24V/50A
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • BatteryIncluded

Specifications

Model

EOP68

Power unit

Electric

Operation

Stand on

Rated loading capacity

Q (lbs)

2200

Load centre

c (Inch)

19.68

Between fork backrest & front wheel

x (Inch)

7.56

Wheelbase

y (Inch)

53.46

Serviceweightwithbattery

lbs

6270

Wheels type

PU

Driving wheel size

Φ×w(Inch)

Φ9.84×5

Bearing wheel size

Φ×w(Inch)

Φ5.9×3.23

Wheels, number front/rear (x = driven)

1,/2

Track width

b11 (Inch)

37.8

Lowered mast height

h1 (Inch)

93.11

Lifting height

h3 (Inch)

177.16

Extended mast height

h4 (Inch)

266.65

Height of overhead guard(cabin)

h6 (Inch)

89.48

height of seat/stand-on platform

h7 (Inch)

10.67

Additional lift height

h9 (Inch)

30.71

total lift height

h10 (Inch)

208.66

Platform lifting height

h12 (Inch)

187.83

Lowered fork height

h13 (Inch)

1.97

Picking height

h15 Inch)

239.01

Overall length

l1 (Inch)

111.41

Body Length

l2 (Inch)

69.29

Overall width

b1/ b2 (Inch)

39.37/145.28

Fork Size

s/e/l (Inch)

1.37/3.93/42.13

Width of fork fixing frame

b3 (Inch)

35.83

outside fork width

b5 (Inch)

34.33

Min.Ground clearance

m2 (Inch)

1.97

Aisle width for pallets 39.37*47.24 crossways

Ast (Inch)

122.24

Aisle width for pallets 31.5*47.24 lengthways

Ast (Inch)

126.77

Turing Radius

Wa (Inch)

61.81

Travel speed,laden/unladen

(km/h)

8

Lifting speed, with/without load(cabin)

(mm/s)

140/150

Lifting speed, with/without load(Fork)

(mm/s)

130/140

Lowering speed, with/without load(cabin)

(mm/s)

240/250

Lowering speed, with/without load(Fork)

(mm/s)

130/95

Climbing ability, with/without load

(%)

3/6

Brake Type

Electromagnetic brake

Drive Motor

(kW)

3

Lift Motor

(kW)

6

Battey, DIN 43531/35/36 A,B,C,no

no

Battery voltage/rate capacity

(V/Ah)

24/280

Battery Weight(±5%)

(LBS)

600

Type of drive control

AC

Noise level

(dB(A))

‰¤75
