Product Description

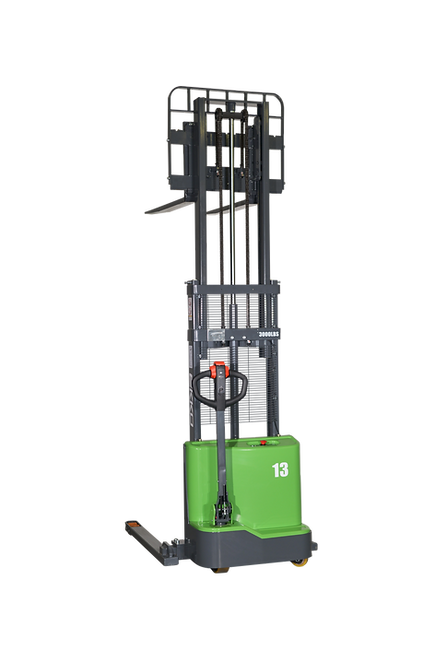

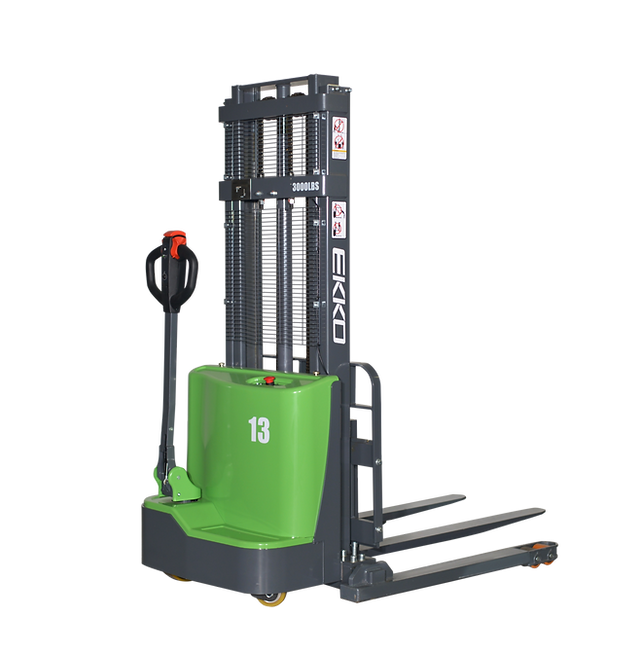

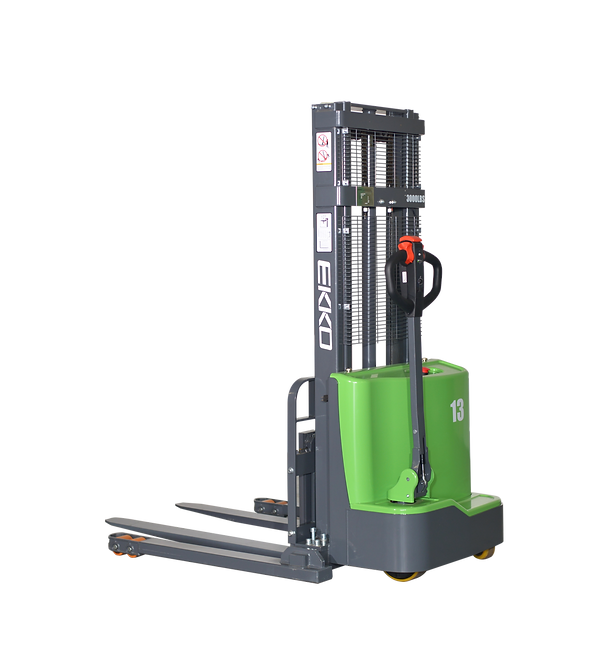

EKKO Lithium Straddle Stacker | 2800 lb Cap | 138" Lift Ht | EB13C-138LI


Straddle. Stack. Succeed. Lithium Straddle Stacker Handling Up to 2800 lb at 138"

Overview

The EKKO EB13C-138LI is a lithium-powered straddle stacker engineered for versatile pallet handling in warehouses, factories, and distribution centers. Outrigger legs straddle the pallet for maximum stability during lifting delivering confidence and control even at full height and full load.

Benefits

  • Handle heavy loads at height confidently straddle design provides superior stability when lifting 2800 lb to 138".
  • Reduce your equipment footprint operates in areas too tight for counterbalanced forklifts, giving you stacking capability without dedicating large floor space.
  • Zero battery maintenance, maximum uptime lithium-ion power eliminates battery watering, equalization, and the need for separate charging rooms, saving you time and space.
  • Speed up pallet movement powered lift and drive reduce physical effort, allowing your team to handle more pallets per hour than manual or semi-powered alternatives.
  • Protect racking and product precise, smooth hydraulic control prevents sudden movements that cause load shifts or rack damage.
  • Own with confidence EKKO's 3-Year Limited Warranty and North American service network ensure you're covered long after delivery.

Features

  • Load Capacity 2800 lb
  • Raised Height 138€�
  • Adjustable Forks 8.6-32.1€œ
  • Adjustable Legs 35.4-51.2€�
  • Fork Length 45.3€œ
  • Curtis Instrument Controller
  • DC Drive Motor
  • Battery 24V/50Ah
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction

Specifications

Model

EB13C- 138Li

Load capacity

(lbs)

2800

The max. lifting height

(in)

138€�

Load center distance

(in)

24

Fork length

(in)

45.3

Single fork width

(in)

4

Fork Adjustment Width

(in)

8.6-32.1

Lowered fork height

(in)

2.56

Adjustable legs

(in)

35.4-51.2

Turning radius

(in)

56.1

Overall length

(in)

73.4

Max Overall width

(in)

61

Extended mast height

(in)

166.9

Lowered mast height

(in)

94.9

Battery voltage

(V/Ah)

24V/50Ah Lithium

Internal Charger

V/A

24V/20A

Lifting Motor

Kw

2.2 kw

Driving Motor

0.75 kw

Service Weight

(lbs)

1400
