EKKO Lithium Aerial Work Platform with 157" Lift Height - ES40E-LI
Reach Heights Up to 157" Safely Lithium-Powered Aerial Work Platform for Any Jobsite
Overview

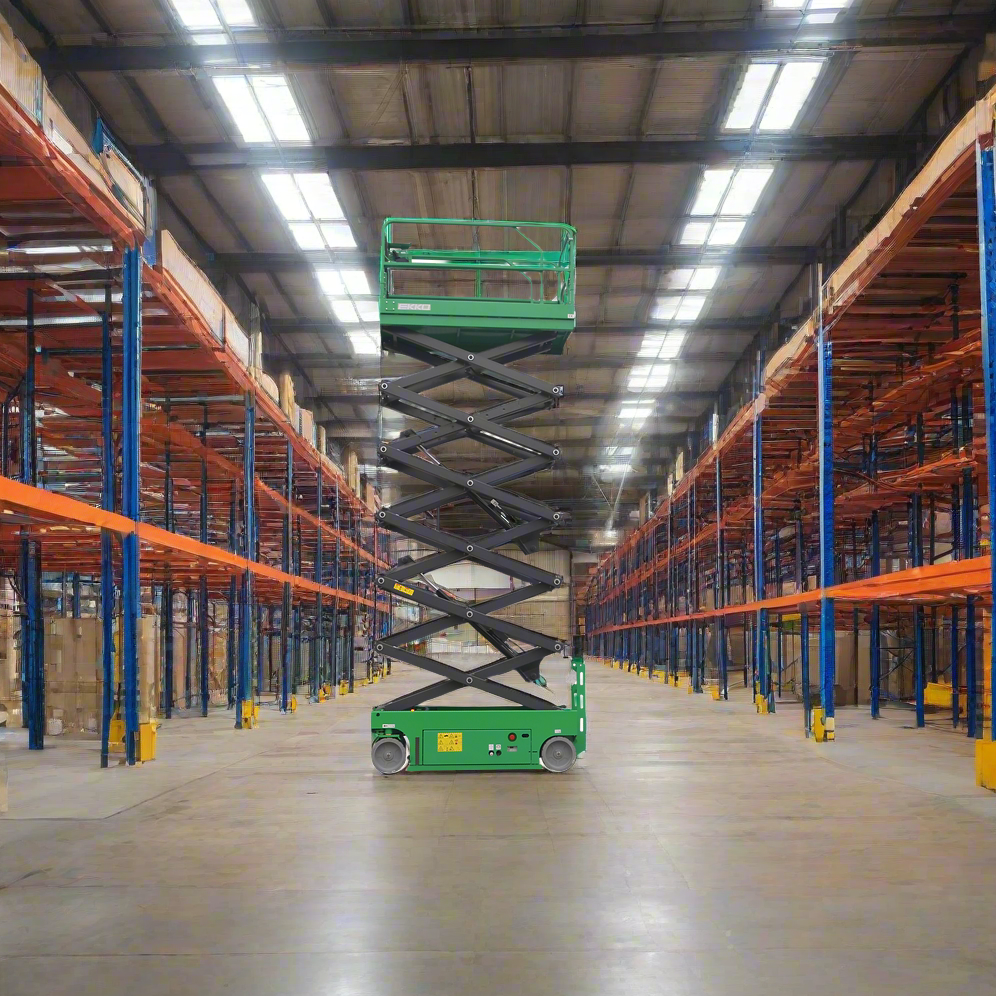

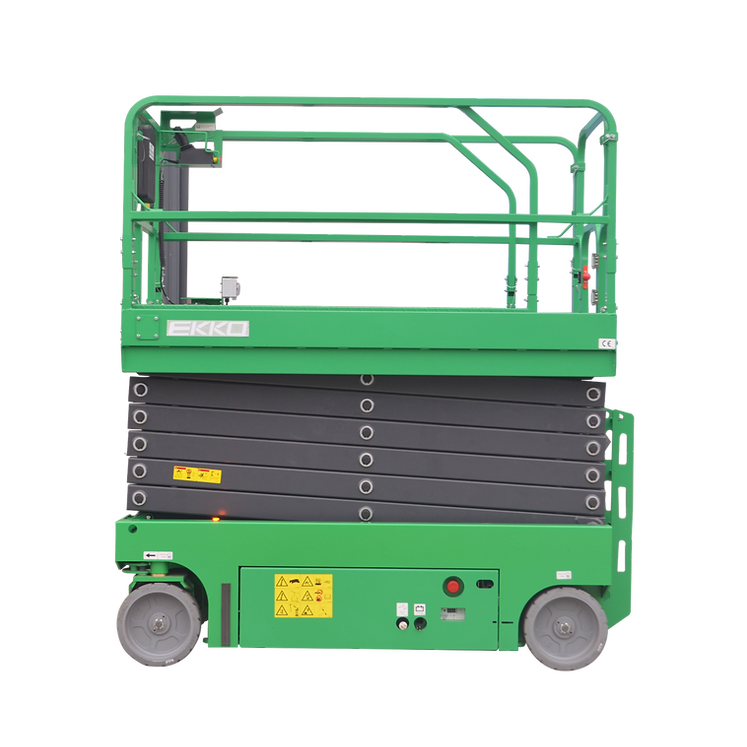

The EKKO ES40E-LI is a lithium-powered aerial work platform designed for safe, efficient elevated work in warehouses, retail spaces, facilities maintenance, and construction environments. With a spacious work platform and intuitive controls, your team can perform overhead tasks faster and with greater confidence.
Benefits
-
Get work done at height safely stable, CE-compliant lift platform designed to position your team precisely where the job requires.
-
Reach virtually any ceiling in your facility extends up to 157" to handle lighting, HVAC, racking, and maintenance tasks without ladders or scaffolding.
-
Eliminate charging downtime lithium-ion battery charges faster, lasts longer per cycle, and requires zero maintenance compared to conventional lead-acid batteries.
-
Reduce setup time self-propelled, lithium-powered operation means no fuel, hoses, or generator required; simply drive into position and lift.
-
Protect your team and your facility anti-slip platform, safety rails, and emergency descent system provide multiple layers of protection.
-
Minimize downtime backed by EKKO's 3-Year Limited Warranty with North American parts and service support.
Features
Specifications
| ES40E-Li |
| product dimensions |

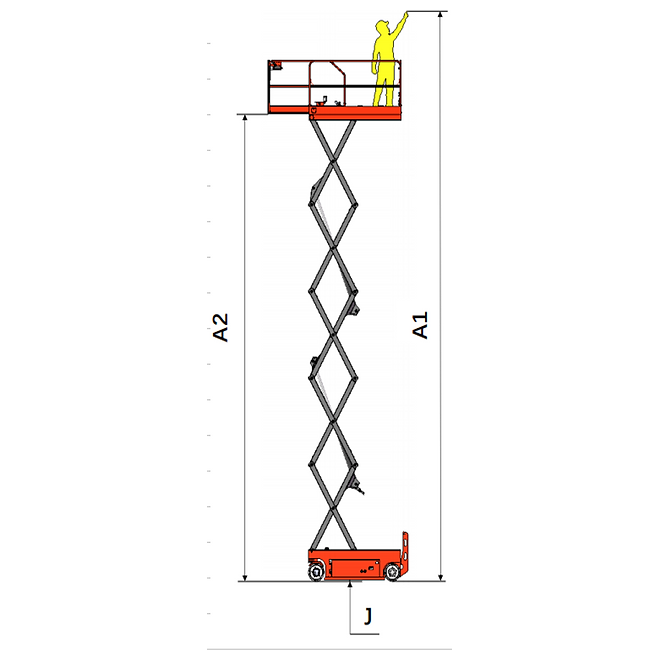

| A1 Max working height |
Inch |
19.7' (236.2'') |
| A2 Max platform height |
Inch |
13' (157'') |

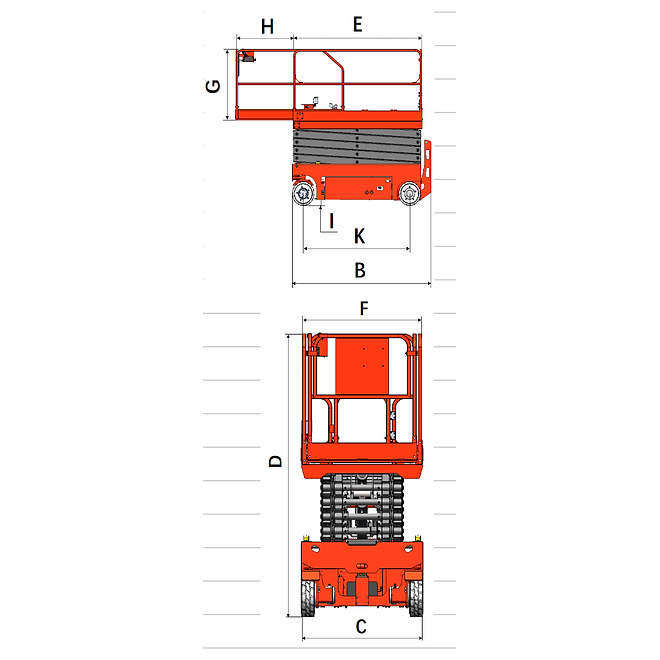

| B Length |
Inch |
57.1 |
| C Width |
Inch |
29.9 |
| D Overall height (guardrail not folded) |
Inch |
76.8 |
| Overall height (folding guardrail) |
Inch |
63 |
| Platform size (length EX width FX height G) |
Inch |
50.4*29.1 |
| G Guardrail height |
Inch |
43.3 |
| H Platform extension size |
Inch |
23.6 |
| I Ground clearance (closed state) |
Inch |
2.36 |
| J Ground clearance (lifting state) |
Inch |
0.59 |
| K Wheelbase |
Inch |
40.6 |
| product performance |
| Maximum number of workers (indoor/outdoor) |
2 / €“ |
| load rating |
LBS |
500 |
| Extended platform load rating |
LBS |
220 |
| Driving speed (folding state) |
km/h |
0~4 |
| Driving speed (lifting condition) |
km/h |
0~0.8 |
| Minimum Turning radius (inside) |
Inch |
0 |
| Minimum turning radius (outside) |
Inch |
61 |
| Rise/fall time |
s |
25/25 |
| Maximum allowable tilting Angle (front/left/right) |
° |
3°/1.5° |
| Maximum allowable wind speed (indoor/outdoor) |
m/s |
0/0 |
| Maximum allowable lateral force (indoor/outdoor) |
N |
400/0 |
| Gradeability |
% |
25 |
| control |
proportional control |
| actuator |
Dual front wheels |
| braking |
Double front wheels |
| Tyre specification/type |
Inch |
9*3.1 |
| Product power |
| Lift/drive motor |
kw |
1.2/0.4*2 |
| Battery voltage/capacity |
V/Ah |
25.6V/75AH |
| Charger input voltage |
VAC |
100-240 |
| Charger output current |
A |
10 |
| control voltage |
VDC |
24 |
| Hydraulic tank capacity |
L |
3 |
| total weight |
lbs |
2046 |
Manufacturer Warranty
This EKKO unit is covered by the EKKO 3-Year Limited Warranty: three (3) years on the frame, forks and mast; one (1) year on the transmission/gearbox, traction and steering motors, controllers and charger; one (1) year on lead-acid batteries and chargers (lithium batteries carry up to five (5) years on select models); and thirty (30) days on wear items such as tires, bulbs, lights, rubber parts and seals. LPG and diesel models: frame, forks and mast for 3 years or 6,000 hours and the engine for 2 years or 4,000 hours, whichever comes first. Coverage begins when the unit is purchased from the authorized dealer, is non-transferable, applies to the original purchaser under normal operating conditions, and excludes labor unless pre-approved by EKKO, normal wear, abuse, improper maintenance or unauthorized modification.
To make a warranty claim, contact Prime Supply Global at support@primesupplyglobal.com or +1 (978) 981-4630 with your order number, model, and photos or video of the issue. We coordinate the claim with the manufacturer on your behalf. Full details on our Warranty page.
