Product Description

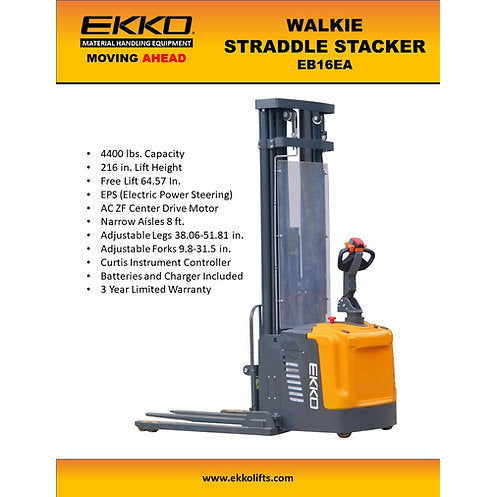

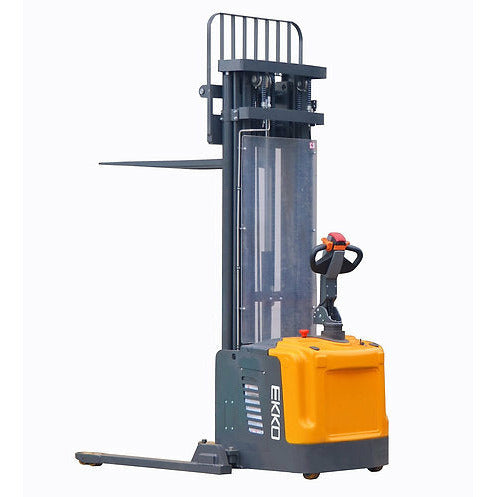

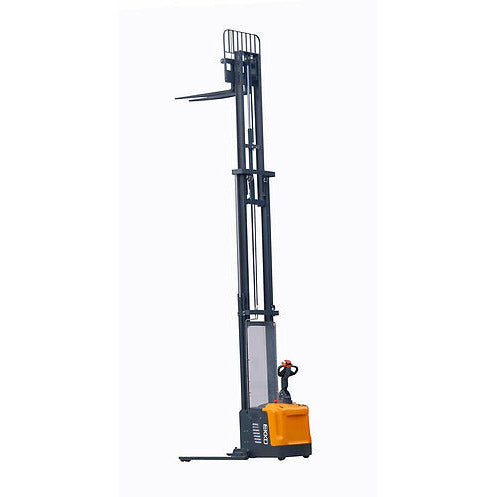

EKKO Electric Straddle Stacker | 216" Lift Height | 4400 lb Capacity | EB16EA


Straddle. Stack. Succeed. Electric Straddle Stacker Handling Up to 4400 lb at 216"

Overview

The EKKO EB16EA is an electric-powered straddle stacker engineered for versatile pallet handling in warehouses, factories, and distribution centers. Outrigger legs straddle the pallet for maximum stability during lifting delivering confidence and control even at full height and full load.

Benefits

  • Handle heavy loads at height confidently straddle design provides superior stability when lifting 4400 lb to 216".
  • Reduce your equipment footprint operates in areas too tight for counterbalanced forklifts, giving you stacking capability without dedicating large floor space.
  • Speed up pallet movement powered lift and drive reduce physical effort, allowing your team to handle more pallets per hour than manual or semi-powered alternatives.
  • Protect racking and product precise, smooth hydraulic control prevents sudden movements that cause load shifts or rack damage.
  • Own with confidence EKKO's 3-Year Limited Warranty and North American service network ensure you're covered long after delivery.

Features

  • Load Capacity 4400 lb
  • Raised Height 216€�
  • Adjustable Forks 9.8-31.5€œ
  • Adjustable Legs 38.06-51.8€�
  • Fork Length 45.28€œ
  • Free Lift 76.25€�
  • EPS (Electric Power Steering)
  • Curtis Instrument Controller
  • 24V Center AC Drive Motor
  • 24V Lift Motor
  • Triple Mast
  • Battery 24V/210Ah
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding

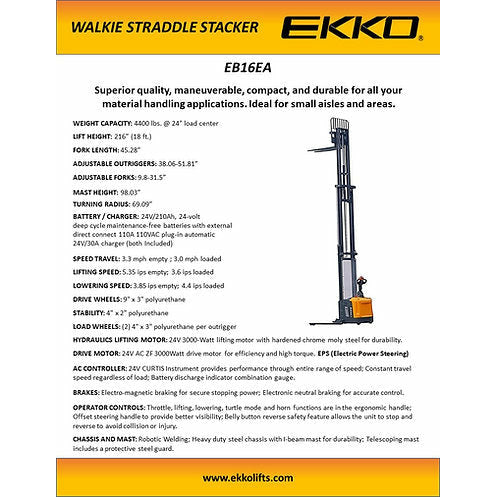

Specifications

Model

EB16EA

Load capacity

(lb)

4400

The max. lifting height

(in)

216

Load center distance

(in)

24

Free Lift

(in)

76.25

EPS (Elec. Power Steer)

Yes

Fork length

(in)

45.28

Single fork width

(in)

4.7

Overall fork width

(in)

9.8-31.5

Lowered fork height

(in)

1.58

Fixed leg length

(in)

42

Adjustable legs

(in)

38.06-51.81

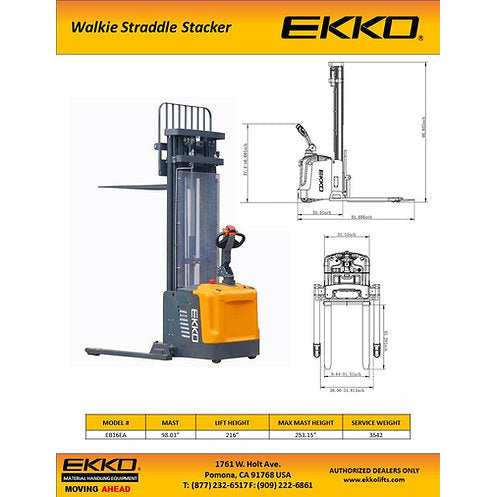

Turning radius

(in)

69.09

Overall length

(in)

81.69

Max width

(in)

46.93-60.71

Extended mast height

(in)

253.15

Lowered mast height

(in)

98.03

Battery voltage

(V/Ah)

24/210Ah

Charger

(V/A)

24V/30A

Lifting Motor

(W)

3000 Watt, Lift speed, laden/unladen:95/160m/s Lowering speed, laden/unladen:130/110mm/s

AC Driving Motor

(W)

3000 Watt, Driving speed: laden/unladen: 5.2/5.5km/h

Service Weight

(lb)

3542
