Product Description

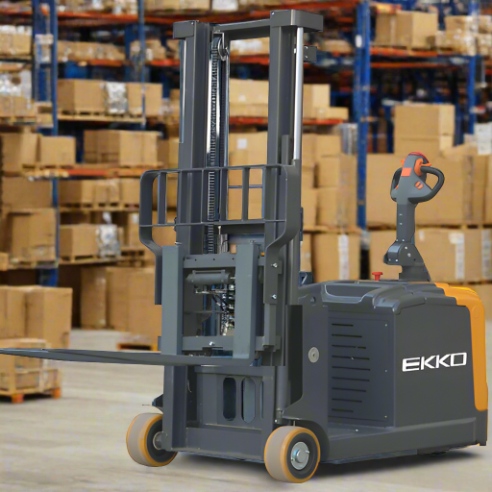

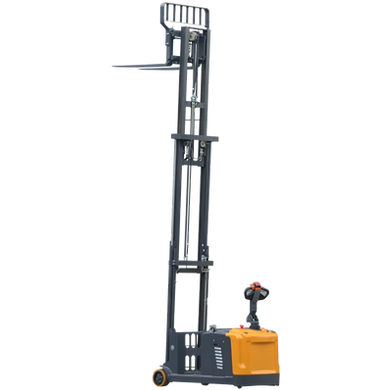

EKKO Counterbalanced Walkie Stacker | Side-Shifting | 177€� Lift Height | 2860 lb Capacity | EK13S-177


Stack Pallets Up to 177" Without a License Electric Counterbalanced Walkie Stacker That Fits Any Budget

Overview

The EKKO EK13S-177 is an electric-powered counterbalanced walkie stacker built for businesses that need reliable pallet stacking without the cost and training requirements of a sit-down forklift. Counterbalanced design eliminates the need for outrigger legs, allowing you to stack standard pallets cleanly without clearance concerns.

Benefits

  • Stack pallets up to 177" safely and efficiently handle loads up to 2860lb with reliable powered lift, no forklift license required.
  • Reduce reliance on large equipment handle everyday stacking tasks independently, freeing your sit-down forklifts for heavier, more complex lifts.
  • Operate in spaces where forklifts can't compact footprint and tight turn radius fit narrow aisles, stockrooms, and areas with limited clearance.
  • Protect your facility and product precise control at low speeds prevents racking collisions and product damage.
  • Lower your total cost of ownership simple electric drivetrain, minimal maintenance, and EKKO's 3-Year Limited Warranty make this a smart long-term investment.

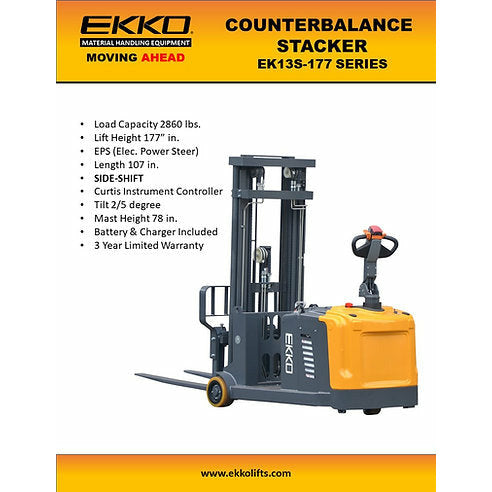

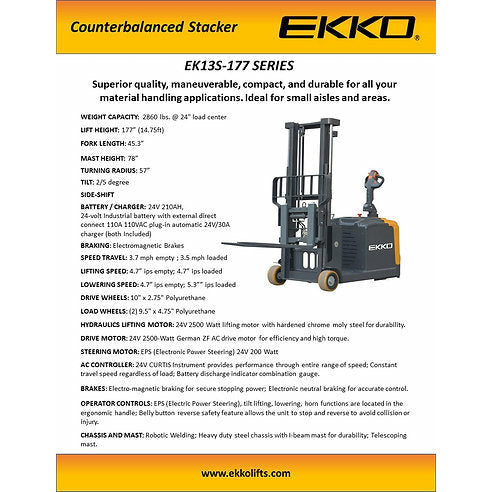

Features

  • Load Capacity 2860lb
  • Raised Height 177" (14.75ft)
  • SIDE-SHIFTING
  • Adjustable Forks 8.6-28.3"
  • Fork Length 45.3"
  • Tilt 2/5 Degree
  • Curtis Controller
  • 24V AC Drive Motor
  • 24V Lift Motor
  • EPS (Electronic Power Steering)
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • Battery Included

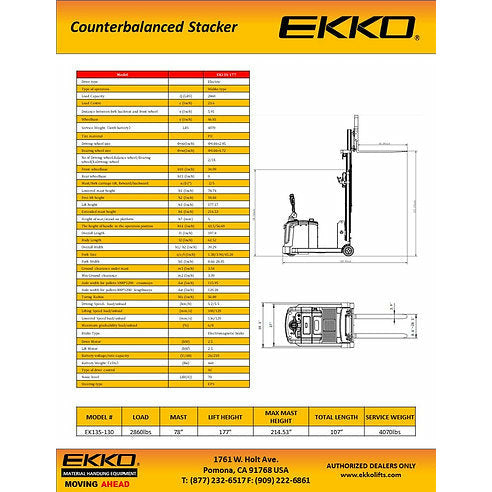

Specifications

Model

EK13S-177

Drive type

Electric

Type of operation

Walike type

Load Capacity

Q (LBS)

2860

Load Centre

c (Inch)

23.6

Distance between fork backrest and front wheel

x (Inch)

5.91

Wheelbase

y (Inch)

46.81

Service Weight(with battery)

LBS

4070

Tire material

PU

Driving wheel size

Φ×w(Inch)

Φ9.84×2.95

Bearing wheel size

Φ×w(Inch)

Φ9.84×4.72

No of Driving wheel,Balance wheel/Bearing wheel(X=Driving wheel

2/1X

Front wheelbase

b10 (Inch)

34.09

Rear wheelbase

b11 (Inch)

0

Mast/fork carriage tilt, forward/backward

α/β (°)

2/5

Lowered mast height

h1 (Inch)

78.74

Free lift height

h2 (Inch)

59.84

Lift height

h3 (Inch)

177.17

Extended mast height

h4 (Inch)

214.53

Height of seat/stand-on platform

h7 (mm)

5

The height of handle in the operation position

h14 (Inch)

43.5/56.69

Overall Length

l1 (Inch)

107.8

Body Length

l2 (Inch)

62.52

Overall Width

b1/ b2 (Inch)

39.29

Fork Size

s/e/l (Inch)

1.38/3.94/45.28

Fork Width

b5 (Inch)

8.66-28.35

Ground clearance under mast

m1 (Inch)

3.54

Min Ground clearance

m2 (Inch)

3.39

Aisle width for pallets 1000*1200 crossways

Ast (Inch)

115.95

Aisle width for pallets 800*1200 lengthways

Ast (Inch)

120.28

Turing Radius

Wa (Inch)

56.89

Driving Speed,load/unload

(km/h)

5.2/5.5

Lifting Speed load/unload

(mm/s)

100/120

Lowered Speed load/unload

(mm/s)

136/120

Maximum gradeability load/unload

(%)

6/8

Brake Type

Electromagnetic brake

Drive Motor

(kW)

2.5

Lift Motor

(kW)

2.5

Battery voltage/rate capacity

(V/Ah)

24/210

Battery Weight(±5%)

(lbs)

460

Type of drive control

AC

Noise level

(dB(A))

70

Steering type

EPS
