Product Description

EKKO Lithium Counterbalanced Walkie Stacker | 130" Lift Height | 3300 lb Capacity | EK14-130Li


Stack Pallets Up to 130" Without a License Lithium Counterbalanced Walkie Stacker That Fits Any Budget

Overview

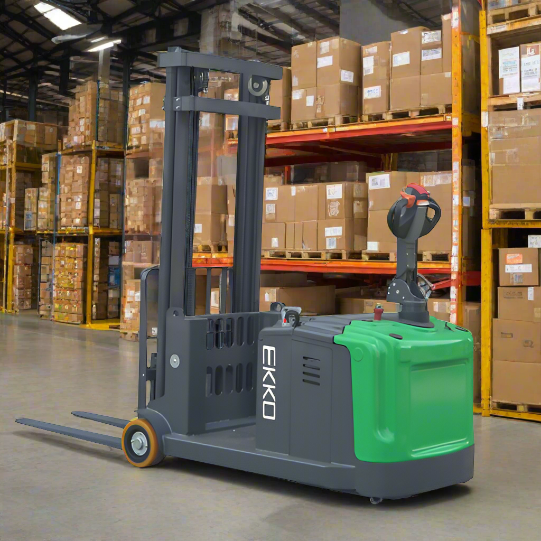

The EKKO EK14-130Li is a lithium-powered counterbalanced walkie stacker built for businesses that need reliable pallet stacking without the cost and training requirements of a sit-down forklift. Counterbalanced design eliminates the need for outrigger legs, allowing you to stack standard pallets cleanly without clearance concerns.

Benefits

  • Stack pallets up to 130" safely and efficiently handle loads up to 3300lb with reliable powered lift, no forklift license required.
  • Reduce reliance on large equipment handle everyday stacking tasks independently, freeing your sit-down forklifts for heavier, more complex lifts.
  • Opportunity charge without consequence lithium-ion battery charges in minutes during breaks, delivers consistent power all shift, and needs zero watering or equalization.
  • Operate in spaces where forklifts can't compact footprint and tight turn radius fit narrow aisles, stockrooms, and areas with limited clearance.
  • Protect your facility and product precise control at low speeds prevents racking collisions and product damage.
  • Lower your total cost of ownership simple electric drivetrain, minimal maintenance, and EKKO's 3-Year Limited Warranty make this a smart long-term investment.

Features

  • Load Capacity 3300lbs
  • Raised Height 130" (10.83ft)
  • Adjustable Forks 8.6-28.3"
  • Fork Length 45.3"
  • Tilt 2/5 Degree
  • Curtis Controller
  • 24V CenterDrive Motor
  • 24V Lift Motor
  • Battery 24V/150Ah Lithium
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • Battery Included

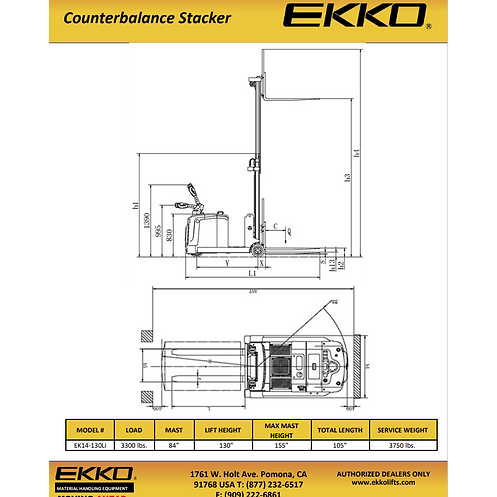

Specifications

Model

EK14-130Li

Drive type

Electric

Type of operation

Walike type

Load Capacity

Q (LBS)

3300

Load Centre

c (Inch)

24

Distance between fork backrest and front wheel

x (Inch)

6

Wheelbase

y (Inch)

47

Service Weight(with battery)

LBS

3750

Tire material

PU

Driving wheel size

Φ×w(Inch)

Φ9.8×3.1

Front wheel size

Φ×w(Inch)

Φ9.84×4.71

No of Driving wheel,Balance wheel/Bearing wheel(X=Driving wheel

2/1X

Load capacity

Power

Operator type

Stand

Mast/fork carriage tilt, forward/backward

α/β (°)

2/5

Lowered mast height

h1 (Inch)

84

Free lift height

h2 (Inch)

4

Lift height

h3 (Inch)

130

Extended mast height

h4 (Inch)

155

Height of seat/stand-on platform

h7 (mm)

5

Fork carriage width

(in)

3.5

Overall Length

l1 (Inch)

105

The max driving speed laden/unladen

(in/h)

16850/204724

Overall Width

b1(Inch)

39

Fork Size

s/e/l (Inch)

1.4/4/37

Fork Width

b5 (Inch)

8.7-28

Ground clearance under mast

m1 (Inch)

2.4

Steering Motor

24V/0.2kw

Aisle width for pallets 1000*1200 crossways

Ast (Inch)

119

Aisle width for pallets 800*1200 lengthways

Ast (Inch)

123

Turing Radius

Wa (Inch)

62

Steering Motor

24V/0.2kw

Lifting Speed load/unload

(in/s)

4/5.5

Lowered Speed load/unload

(in/s)

5.3/4.7

Maximum gradeability load/unload

(%)

6/10

Charger

24V/50A

Drive Motor

(kW)

2.5

Lift Motor

(kW)

3.0

Battery voltage/rate capacity

(V/Ah)

24/150AH-Li
