Product Description

EKKO LithiumAerial Work Platform Lift Height 39' (468'') - ES120E-LI


Reach Heights Up to 39' Safely Lithium-Powered Aerial Work Platform for Any Jobsite

Overview

The EKKO ES120E-LI is a lithium-powered aerial work platform designed for safe, efficient elevated work in warehouses, retail spaces, facilities maintenance, and construction environments. With a spacious work platform and intuitive controls, your team can perform overhead tasks faster and with greater confidence.

Benefits

  • Get work done at height safely stable, CE-compliant lift platform designed to position your team precisely where the job requires.
  • Reach virtually any ceiling in your facility extends up to 39' to handle lighting, HVAC, racking, and maintenance tasks without ladders or scaffolding.
  • Eliminate charging downtime lithium-ion battery charges faster, lasts longer per cycle, and requires zero maintenance compared to conventional lead-acid batteries.
  • Reduce setup time self-propelled, lithium-powered operation means no fuel, hoses, or generator required; simply drive into position and lift.
  • Protect your team and your facility anti-slip platform, safety rails, and emergency descent system provide multiple layers of protection.
  • Minimize downtime backed by EKKO's 3-Year Limited Warranty with North American parts and service support.

Features

Specifications

ES120E-LI

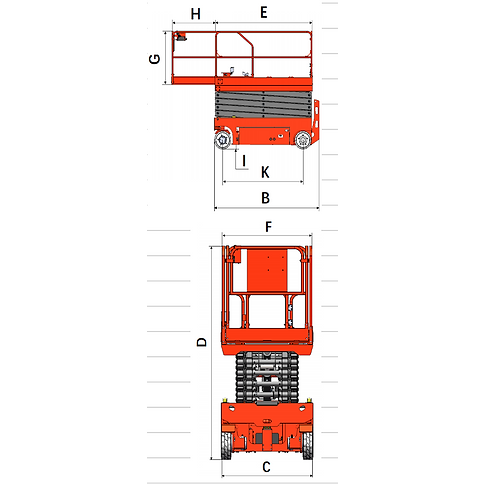

product dimensions

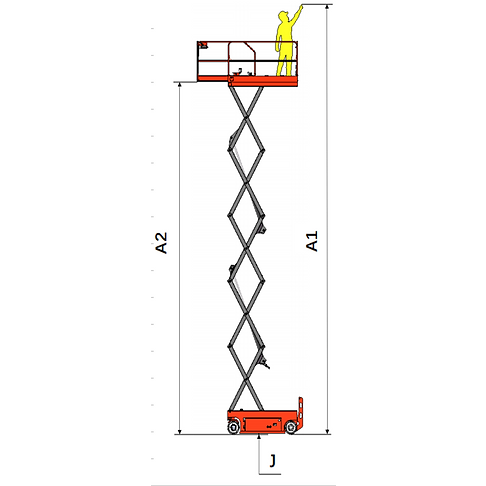

A1 Max working height Inch 45' (547'')
A2 Max platform height Inch 39' (468'')
B Length Inch 94.5
C Width Inch 45.27
D Overall height (guardrail not folded) Inch 102.36
Overall height (folding guardrail) Inch 101.74
Platform size (length EX width FX height G) Inch 88.58x45.27
G Guardrail height Inch 43.3
H Platform extension size Inch 39.37
I Ground clearance (closed state) Inch 3.74
J Ground clearance (lifting state) Inch 0.78
K Wheelbase Inch 72.83
product performance
Maximum number of workers (indoor/outdoor) 2 / -
load rating LBS 700
Extended platform load rating LBS 265
Driving speed (folding state) km/h 0-3.2
Driving speed (lifting condition) km/h 0~0.8
Minimum Turning radius (inside) Inch 0
Minimum turning radius (outside) Inch 86.61
Rise/fall time s 52/52
Maximum allowable tilting Angle (front/left/right) ° 3°/1.5°
Maximum allowable wind speed (indoor/outdoor) m/s 0/0
Maximum allowable lateral force (indoor/outdoor) N 400/0
Gradeability % 30
control proportional control
actuator Double front wheels
braking Double rear wheels
Tyre specification/type Inch 15*5
Product power
Lift/drive motor kw 3.3/0.7x2
Battery voltage/capacity V/Ah 25.6V/230AH
Charger input voltage VAC 25.6V
Charger output current A 36
control voltage VDC 24
Hydraulic tank capacity L 22
total weight lbs 6490

Manufacturer Warranty

This EKKO unit is covered by the EKKO 3-Year Limited Warranty: three (3) years on the frame, forks and mast; one (1) year on the transmission/gearbox, traction and steering motors, controllers and charger; one (1) year on lead-acid batteries and chargers (lithium batteries carry up to five (5) years on select models); and thirty (30) days on wear items such as tires, bulbs, lights, rubber parts and seals. LPG and diesel models: frame, forks and mast for 3 years or 6,000 hours and the engine for 2 years or 4,000 hours, whichever comes first. Coverage begins when the unit is purchased from the authorized dealer, is non-transferable, applies to the original purchaser under normal operating conditions, and excludes labor unless pre-approved by EKKO, normal wear, abuse, improper maintenance or unauthorized modification.

To make a warranty claim, contact Prime Supply Global at support@primesupplyglobal.com or +1 (978) 981-4630 with your order number, model, and photos or video of the issue. We coordinate the claim with the manufacturer on your behalf. Full details on our Warranty page.
