Product Description

EKKO Aerial Work Platform Lift Height 39' (468'') - ES120E


Reach Heights Up to 39' Safely Electric Aerial Work Platform for Any Jobsite

Overview

The EKKO ES120E is an electric aerial work platform designed for safe, efficient elevated work in warehouses, retail spaces, facilities maintenance, and construction environments. With a spacious work platform and intuitive controls, your team can perform overhead tasks faster and with greater confidence.

Benefits

  • Get work done at height safely stable, CE-compliant lift platform designed to position your team precisely where the job requires.
  • Reach virtually any ceiling in your facility extends up to 39' to handle lighting, HVAC, racking, and maintenance tasks without ladders or scaffolding.
  • Reduce setup time self-propelled, electric operation means no fuel, hoses, or generator required; simply drive into position and lift.
  • Protect your team and your facility anti-slip platform, safety rails, and emergency descent system provide multiple layers of protection.
  • Minimize downtime backed by EKKO's 3-Year Limited Warranty with North American parts and service support.

Features

Specifications

ES120E

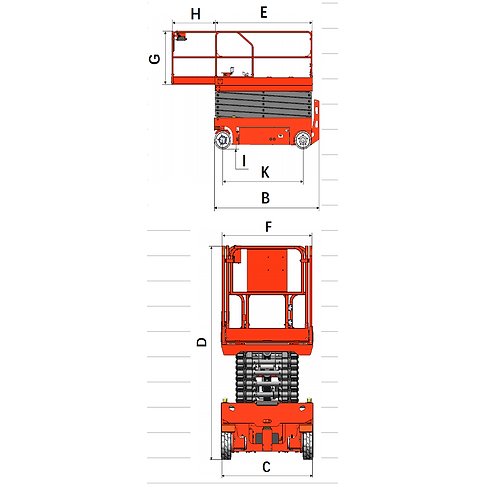

product dimensions

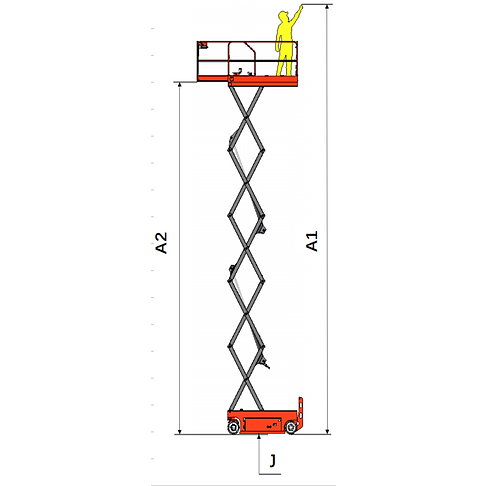

A1 Max working height Inch 45' (547'')
A2 Max platform height Inch 39' (468'')
B Length Inch 94.5
C Width Inch 45.27
D Overall height (guardrail not folded) Inch 102.36
Overall height (folding guardrail) Inch 101.74
Platform size (length EX width FX height G) Inch 88.58x45.27
G Guardrail height Inch 43.3
H Platform extension size Inch 39.37
I Ground clearance (closed state) Inch 3.74
J Ground clearance (lifting state) Inch 0.78
K Wheelbase Inch 72.83
product performance
Maximum number of workers (indoor/outdoor) 2 / -
load rating LBS 700
Extended platform load rating LBS 265
Driving speed (folding state) km/h 0-3.2
Driving speed (lifting condition) km/h 0~0.8
Minimum Turning radius (inside) Inch 0
Minimum turning radius (outside) Inch 86.61
Rise/fall time s 52/52
Maximum allowable tilting Angle (front/left/right) ° 3°/1.5°
Maximum allowable wind speed (indoor/outdoor) m/s 0/0
Maximum allowable lateral force (indoor/outdoor) N 400/0
Gradeability % 30
control proportional control
actuator Double front wheels
braking Double rear wheels
Tyre specification/type Inch 15*5
Product power
Lift/drive motor kw 3.3/0.7x2
Battery voltage/capacity V/Ah 12x4/300
Charger input voltage VAC 100-240
Charger output current A 36
control voltage VDC 24
Hydraulic tank capacity L 22
total weight lbs 6490
