Product Description

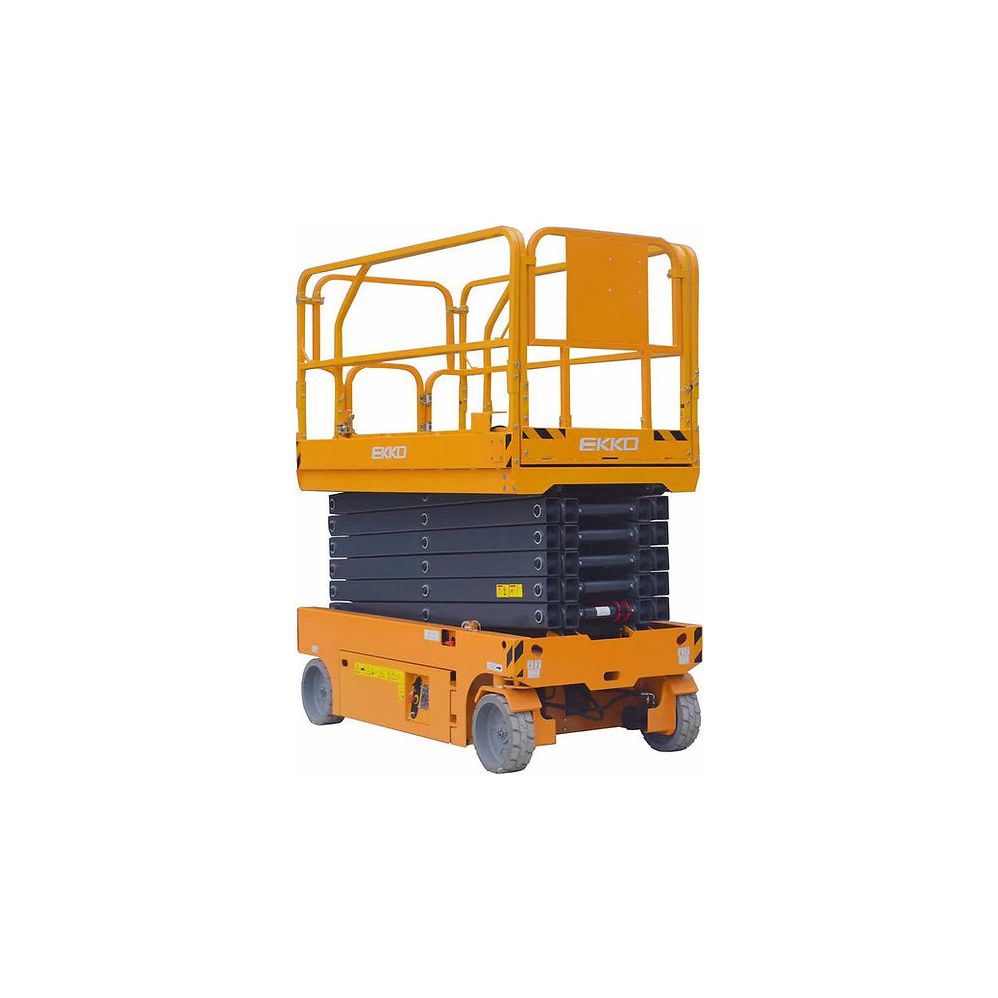

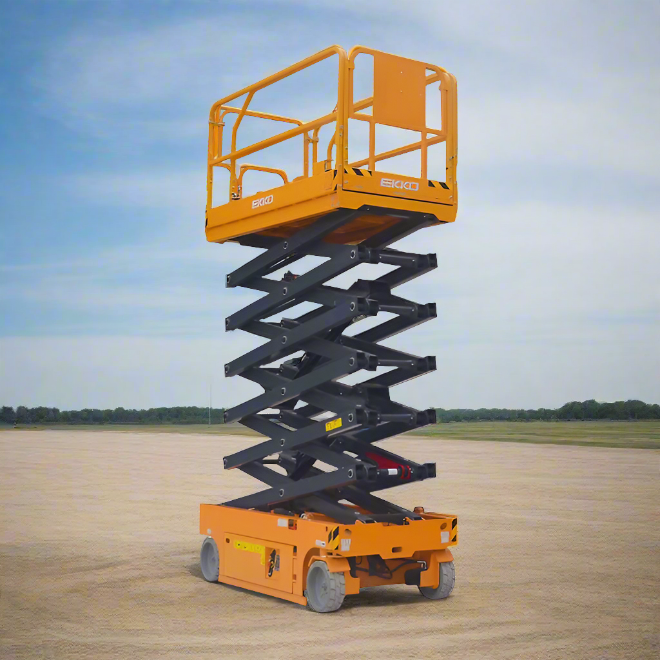

EKKO Aerial Work Platform Lift Height 13' (157'') - ES40E


Reach Heights Up to 13' Safely Electric Aerial Work Platform for Any Jobsite

Overview

The EKKO ES40E is an electric aerial work platform designed for safe, efficient elevated work in warehouses, retail spaces, facilities maintenance, and construction environments. With a spacious work platform and intuitive controls, your team can perform overhead tasks faster and with greater confidence.

Benefits

  • Get work done at height safely stable, CE-compliant lift platform designed to position your team precisely where the job requires.
  • Reach virtually any ceiling in your facility extends up to 13' to handle lighting, HVAC, racking, and maintenance tasks without ladders or scaffolding.
  • Reduce setup time self-propelled, electric operation means no fuel, hoses, or generator required; simply drive into position and lift.
  • Protect your team and your facility anti-slip platform, safety rails, and emergency descent system provide multiple layers of protection.
  • Minimize downtime backed by EKKO's 3-Year Limited Warranty with North American parts and service support.

Features

Specifications

ES40E

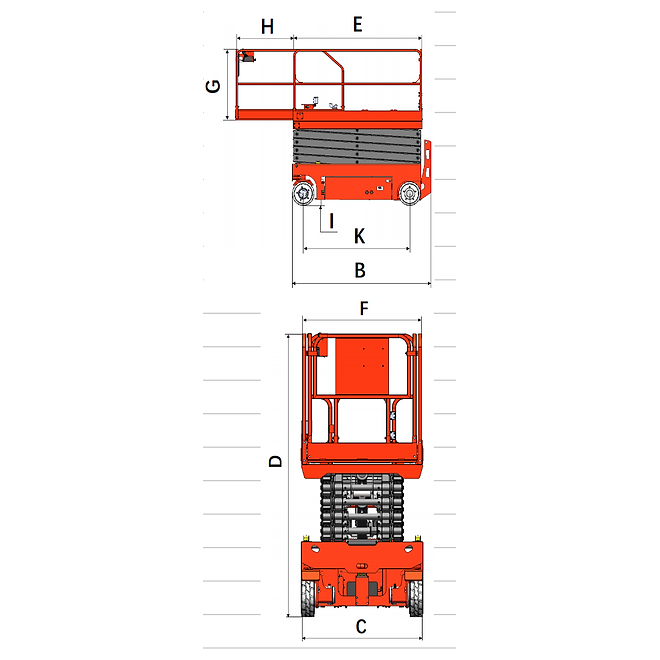

product dimensions

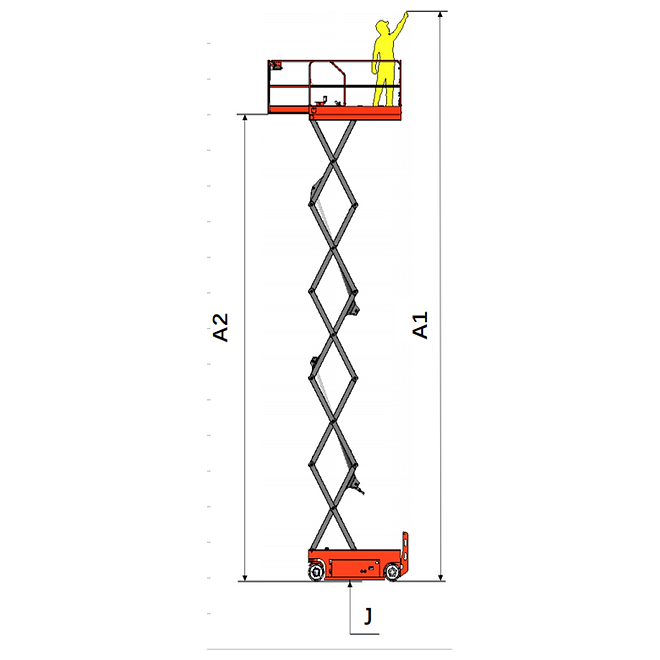

A1 Max working height Inch 19.7' (236.2'')
A2 Max platform height Inch 13' (157'')
B Length Inch 57.1
C Width Inch 29.9
D Overall height (guardrail not folded) Inch 76.8
Overall height (folding guardrail) Inch 63
Platform size (length EX width FX height G) Inch 50.4*29.1
G Guardrail height Inch 43.3
H Platform extension size Inch 23.6
I Ground clearance (closed state) Inch 2.36
J Ground clearance (lifting state) Inch 0.59
K Wheelbase Inch 40.6
product performance
Maximum number of workers (indoor/outdoor) 2 / €“
load rating LBS 500
Extended platform load rating LBS 220
Driving speed (folding state) km/h 0~4
Driving speed (lifting condition) km/h 0~0.8
Minimum Turning radius (inside) Inch 0
Minimum turning radius (outside) Inch 61
Rise/fall time s 25/25
Maximum allowable tilting Angle (front/left/right) ° 3°/1.5°
Maximum allowable wind speed (indoor/outdoor) m/s 0/0
Maximum allowable lateral force (indoor/outdoor) N 400/0
Gradeability % 25
control proportional control
actuator Dual front wheels
braking Double front wheels
Tyre specification/type Inch 9*3.1
Product power
Lift/drive motor kw 1.2/0.4*2
Battery voltage/capacity V/Ah 12x2/100
Charger input voltage VAC 100-240
Charger output current A 10
control voltage VDC 24
Hydraulic tank capacity L 3
total weight lbs 2046

Manufacturer Warranty

This EKKO unit is covered by the EKKO 3-Year Limited Warranty: three (3) years on the frame, forks and mast; one (1) year on the transmission/gearbox, traction and steering motors, controllers and charger; one (1) year on lead-acid batteries and chargers (lithium batteries carry up to five (5) years on select models); and thirty (30) days on wear items such as tires, bulbs, lights, rubber parts and seals. LPG and diesel models: frame, forks and mast for 3 years or 6,000 hours and the engine for 2 years or 4,000 hours, whichever comes first. Coverage begins when the unit is purchased from the authorized dealer, is non-transferable, applies to the original purchaser under normal operating conditions, and excludes labor unless pre-approved by EKKO, normal wear, abuse, improper maintenance or unauthorized modification.

To make a warranty claim, contact Prime Supply Global at support@primesupplyglobal.com or +1 (978) 981-4630 with your order number, model, and photos or video of the issue. We coordinate the claim with the manufacturer on your behalf. Full details on our Warranty page.
