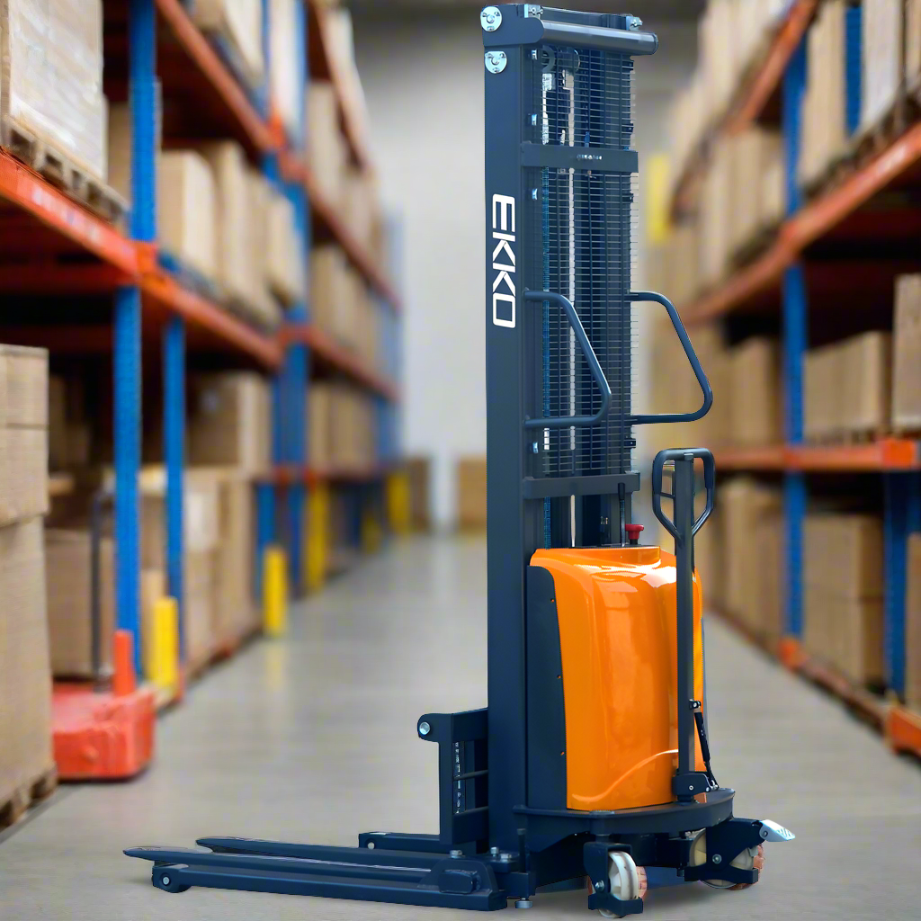

EKKO Semi-Electric Straddle Stacker | 138" Lift Height | 3300 lb Capacity | EA15D

Product Description

EKKO Semi-Electric Straddle Stacker | 138" Lift Height | 3300 lb Capacity | EA15D


Straddle. Stack. Succeed. Electric Straddle Stacker Handling Up to 3300lb at 138"

Overview

The EKKO EA15D is an electric-powered straddle stacker engineered for versatile pallet handling in warehouses, factories, and distribution centers. Outrigger legs straddle the pallet for maximum stability during lifting delivering confidence and control even at full height and full load.

Benefits

  • Handle heavy loads at height confidently straddle design provides superior stability when lifting 3300lb to 138".
  • Reduce your equipment footprint operates in areas too tight for counterbalanced forklifts, giving you stacking capability without dedicating large floor space.
  • Speed up pallet movement powered lift and drive reduce physical effort, allowing your team to handle more pallets per hour than manual or semi-powered alternatives.
  • Protect racking and product precise, smooth hydraulic control prevents sudden movements that cause load shifts or rack damage.
  • Own with confidence EKKO's 3-Year Limited Warranty and North American service network ensure you're covered long after delivery.

Features

  • Load Capacity 3300lbs.
  • Raised Height 138" (11.5ft)
  • Adjustable Forks8.3-33.5€�
  • Adjustable Legs 43.5-59.1€�
  • Fork Length 45.3"
  • Power Lifting
  • Manual Drive
  • Adjustable Forks
  • Built-in Charger 12v 120Ah
  • Batteries Included
  • Ergonomic Handle
  • Steel Construction
  • Robotic Welding

Specifications

Model

EA15D

Load Capacity

(lb)

3300

Lifting height Max.

(in)

138

Load center distance

(in)

24

Fork length

(in)

45.3

Single fork width

(in)

4

Overall fork width

(in)

8-32.7

Lowered fork height

(in)

2.35

Fixed leg length

(in)

36.5

Fixed leg width, single

(in)

3.94

Adjustable legs

(in)

44.5-59.1

Turning radius

(in)

52.6

Overall length

(in)

70

Overall width max

(in)

61

Extended mast height

(in)

154

Lowered mast height

(in)

92

Battery Voltage

(V/Ah)

12V/120Ah

Charger

(V/A)

12V/15A

Lift Motor

(V/W)

DC 12V/1500W

Service Weight

(lb)

1450
