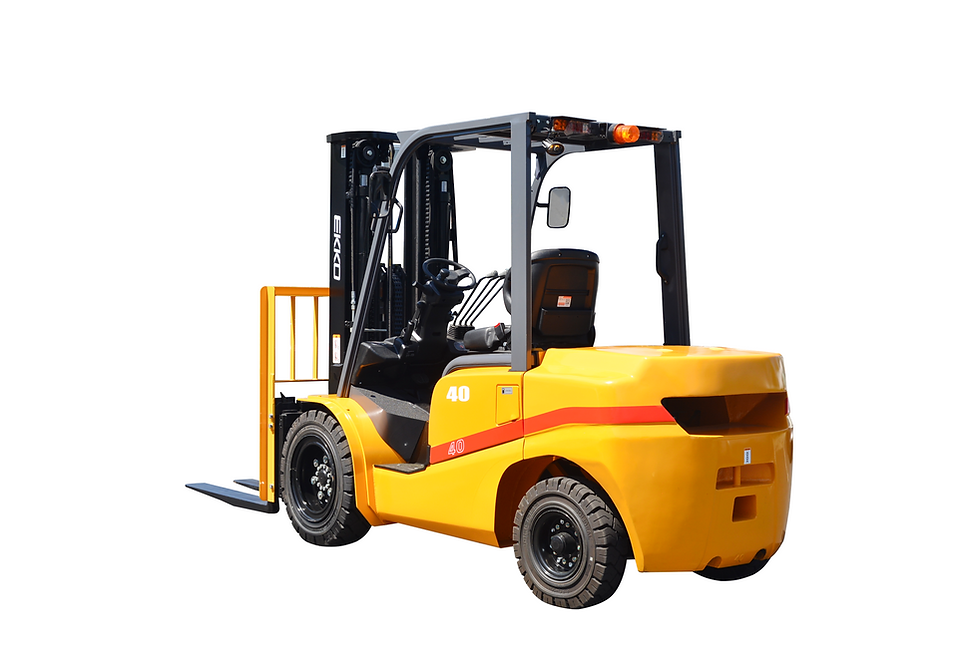

EKKO Pneumatic Propane Forklift (Diesel) 8,500 lbs cap, 185" Lift Height - EK40D
Heavy-Duty Outdoor Lifting: 8,500 lb Capacity, Diesel-Powered Pneumatic Forklift for Any Terrain
Overview
The EKKO EK40D is a diesel-powered pneumatic forklift built for demanding outdoor and heavy-duty applications where electric forklifts reach their limits. Equipped with solid pneumatic tires and a high-torque diesel engine, it delivers the power, durability, and all-terrain capability your operation needs in lumberyards, loading yards, construction sites, and beyond.
Benefits
-
Lift heavy loads on any surface up to 8,500 lb capacity with pneumatic tires that handle gravel, asphalt, uneven yard surfaces, and loading docks with equal confidence.
-
Work through full shifts without stopping instant refueling means no waiting for a battery charge; just swap the tank or refuel and keep going.
-
Reduce outdoor handling costs purpose-built for yard, dock, and outdoor environments where electric-only machines are impractical or underpowered.
-
Get reliable performance in harsh conditions heavy-duty steel construction and commercial-grade drivetrain components withstand the demands of tough industrial environments.
-
Own with confidence backed by EKKO's 3-Year Limited Warranty and a North American parts and service network.
Features
- The operation space is enlarged andheightened overhead guard and using large arc shape of the overhead guard's front leg
- Multifunctional suspended seat increase the support of the driver, and reduce vibration, and balancing the weight of the driver.
- Steering wheel adjusting mechanism is disposed in the appopriateposition making it easily adjustable.
- By using impedance composited muffler, this truck reduces the level of sound output.
Specifications
|
Model
|
|
EK40D
|
|
Drive type
|
|
Diesel
|
|
Type of operation
|
Diesel |
|
Load Capacity
|
LBS
|
8500
|
|
Load Center
|
in
|
24
|
|
Liftheight
|
in
|
185
|
|
Wheelbase
|
in
|
70.8
|
|
Service Weight
|
LBS
|
11,519
|
|
Tire material
|
|
Solid Pneumatic Tire |
|
Wheel
|
|
250-15-16PR/6.50-10-10PR
|
|
Service Brake
|
|
Hydraulic Floor Pedal |
|
Overall width
|
in
|
52.9
|
|
Overall length with forks
|
in
|
157 |
|
Overall lengthwithout forks
|
in
|
112
|
|
Min ground clearance (at the mast)
|
in
|
4.7
|
|
Max traveling speed (loaded/unloaded)
|
mph
|
10.3/11.2
|
|
Mast Overall height
|
in
|
86.2 |
|
Free liftingheight
|
in
|
37.9
|
|
Overal Height w/ forks lifted
|
in
|
234 |
|
Fork Size
|
in
|
42.1x5.9x1.9 |
|
Battery
|
V/ Ah
|
12/80
|
|
Engine Mode
|
|
Mitsubishi 4EG
|
|
Engine rated power
|
HP/rpm |
Diesel: 49/2250
|
Manufacturer Warranty
This EKKO unit is covered by the EKKO 3-Year Limited Warranty: three (3) years on the frame, forks and mast; one (1) year on the transmission/gearbox, traction and steering motors, controllers and charger; one (1) year on lead-acid batteries and chargers (lithium batteries carry up to five (5) years on select models); and thirty (30) days on wear items such as tires, bulbs, lights, rubber parts and seals. LPG and diesel models: frame, forks and mast for 3 years or 6,000 hours and the engine for 2 years or 4,000 hours, whichever comes first. Coverage begins when the unit is purchased from the authorized dealer, is non-transferable, applies to the original purchaser under normal operating conditions, and excludes labor unless pre-approved by EKKO, normal wear, abuse, improper maintenance or unauthorized modification.
To make a warranty claim, contact Prime Supply Global at support@primesupplyglobal.com or +1 (978) 981-4630 with your order number, model, and photos or video of the issue. We coordinate the claim with the manufacturer on your behalf. Full details on our Warranty page.
