Product Description

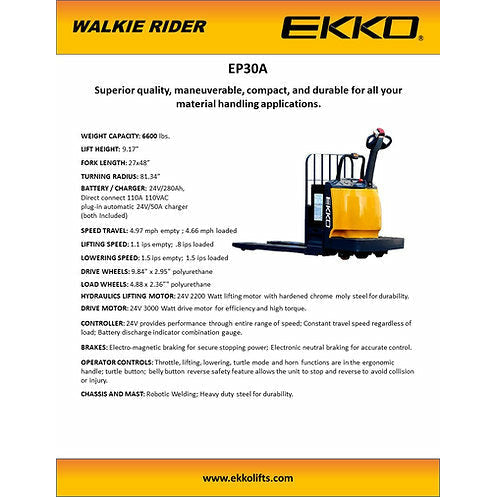

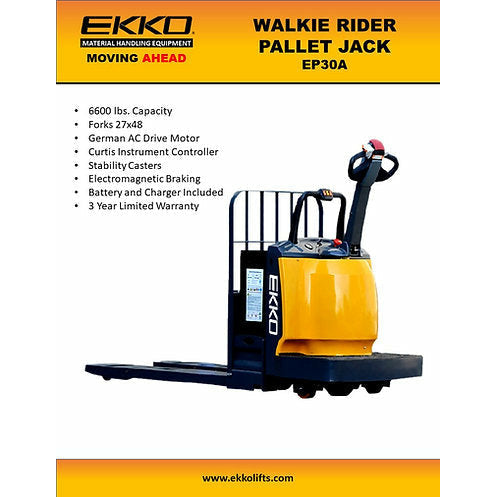

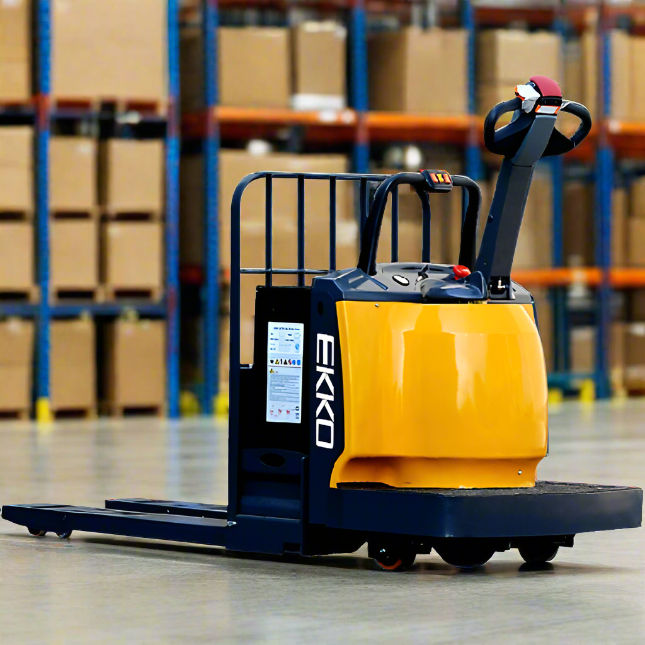

EKKO Rider Pallet Truck with 6600 lb Load Capacity - EP30A


Cover More Ground, Move More Pallets Electric-Powered Center-Control Rider Pallet Truck, 6600lb Capacity

Overview

The EKKO EP30A is an electric-powered center-controlled rider pallet truck built for high-volume, long-distance pallet transport across large warehouse floors, distribution centers, and retail backrooms. Operators ride the truck rather than walking, dramatically increasing travel speed and reducing fatigue during demanding shifts.

Benefits

  • Cover your facility faster rider design lets operators travel at speed across long distances, moving 6600lb without the fatigue of walking.
  • Boost pallet throughput faster travel speed and powered lift translate directly to more pallet moves per hour and lower cost-per-pallet metrics.
  • Reduce operator fatigue and injury risk riding rather than walking prevents the repetitive strain injuries that drive workers' comp claims in high-volume facilities.
  • Operate in tight spaces and open floors alike center-control steering gives the operator precise control in loading docks, staging areas, and open warehouse floors.
  • Invest with confidence backed by EKKO's 3-Year Limited Warranty and North American parts and service network.

Features

  • Load Capacity 6600lbs.
  • Fork Size 27x48
  • Raised Height 9.17"
  • Lowered Height 3.26"
  • Curtis Controller
  • ZF AC Driver Motor
  • Polyurethane Wheels
  • Steel Entry Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • Battery 24V/280AhIncluded

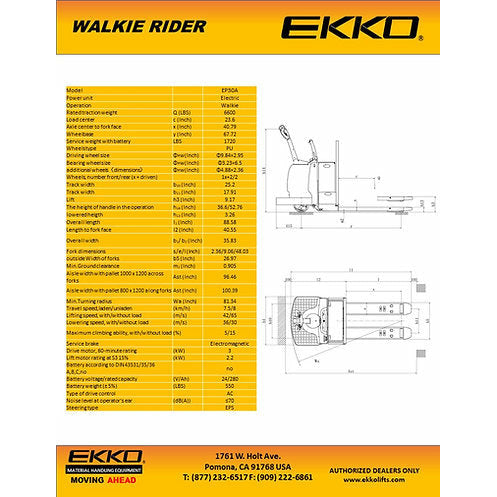

Specifications

Model

EP30A

Lift

Electric

Drive

Electric

Load capacity

(lb)

6600

Load center

(in)

24

Wheelbase

(in)

67.72

Lowered fork height

(in)

3.26

Lifting height

(in)

9.17

Overall length

(in)

88.58

Overall width

(in)

35.83

Fork size

s/e/l (in)

2/9/48

Outside distance of fork

in)

27

Turning radius

(in)

81.34

Lifting speed, laden/unladen

(in/s)

7.5/8

Lowering speed, laden/unladen

(in/s)

36/30

Max gradient performance laden/unladen

(%)

5/15

Brake type

electromagnetic

Drive motor

(W)

3000

Lift motor

(W)

2200

Charger

(V/A)

24/30

Battery voltage/rated capacity

(V/Ah)

24V/280Ah

AC Drive Motor

AC Motor

Noise level at operator sear

(dB(A))

70

Service weight

(with battery)

(lb)

1720
