Product Description

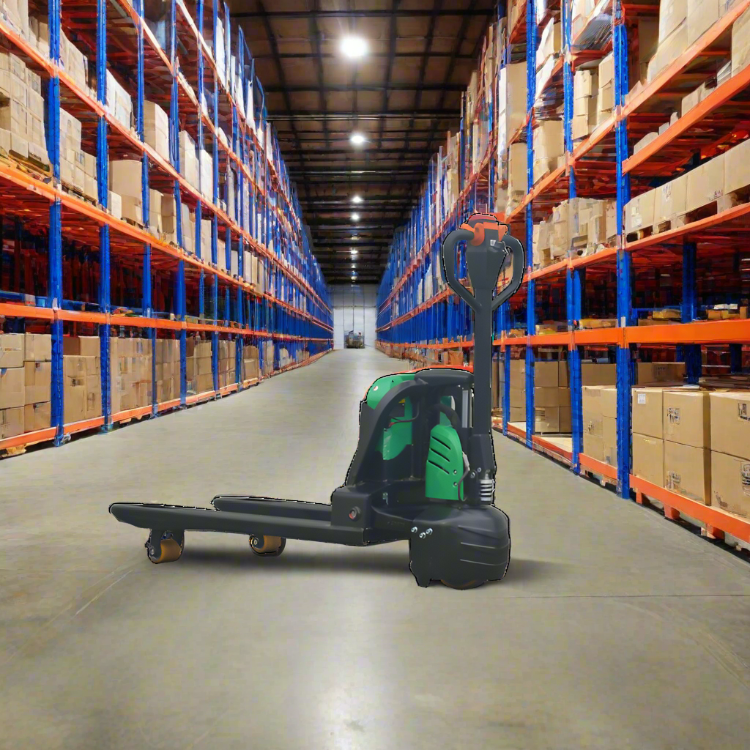

EKKO Lithium-Ion Electric Walkie Pallet Truck with 3300 lb Load Capacity - EPF15Li


Move Up to 3300 lb with Zero Effort Lithium-Powered Walkie Pallet Truck Built for High-Volume Operations

Overview

The EKKO EPF15Li is a powered by a maintenance-free lithium-ion battery walkie pallet truck designed to streamline pallet handling in warehouses, distribution centers, and retail environments. Compact, maneuverable, and easy to operate, it handles the repetitive pallet transport your floor demands without the fatigue of manual jacks.

Benefits

  • Move heavy loads effortlessly handle pallets up to 3300 lb with powered lift and drive, dramatically reducing physical strain on operators.
  • Increase floor throughput fast travel speeds and quick lift cycles mean more pallet moves per hour compared to manual or semi-powered alternatives.
  • Charge anytime, anywhere lithium-ion battery supports opportunity charging during breaks with no damage, eliminating dedicated charging room logistics.
  • Protect your workforce powered operation reduces repetitive strain injuries, lowering workers' compensation claims and absenteeism.
  • Minimize downtime reliable electric drivetrain requires minimal maintenance and is backed by EKKO's 3-Year Limited Warranty.

Features

  • Lithium 24V Powered
  • Load Capacity 3300 lb
  • Fork Size 27x48
  • Raised Height 7.87"
  • Lowered Height 2.95"
  • Pinwheel Capability
  • Polyurethane Wheels

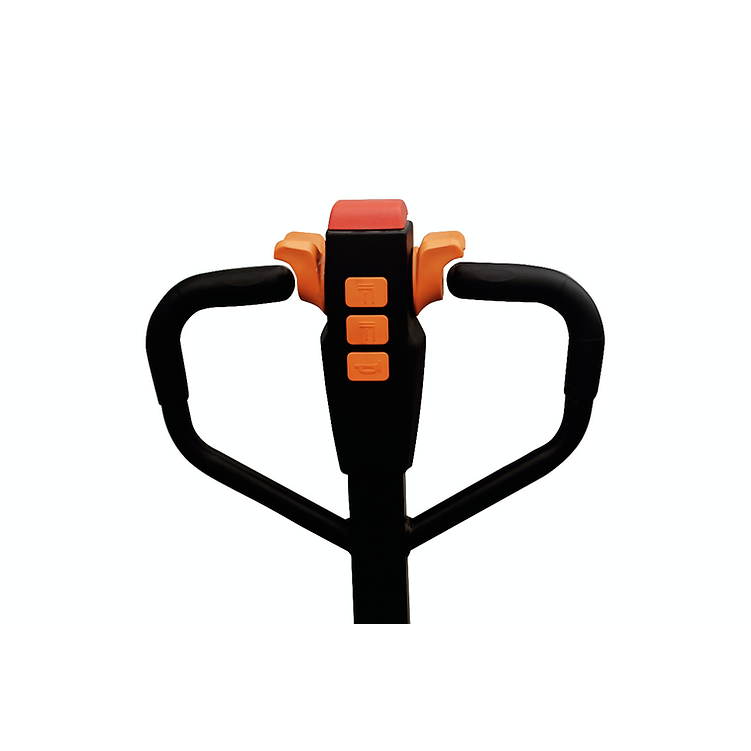

  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • (1) Lithium Iron Battery LiFePO4Included 24V/30Ah

Specifications

Mode EPF15LI
Drive type Electric
Manner of operation Walkie
Load Capacity Q (LBS) 3300
Load Centre c (Inch) 23.6
Distance between fork backrest and front wheel x (Inch) 39.92
Wheel Base y (Inch) 51.69
Tire material PU
Driving wheel size Φ×w(Inch) Φ8.27×2.76
Bearing wheel size Φ×w(Inch) Φ3.15×3.35
Qty of wheel,Front/Rear(x=driving wheel) 1x/2
Tread b11 (Inch) 21.06
Lifting Height h3 (Inch) 7.87
The height of handle in the operation position h14 (Inch) 29.13/45.67
Lowered fork height h13 (Inch) 2.95
Overall Length l1 (Inch) 65.86
Body Length l2 (Inch) 17.83
Overall Width b1/ b2 (Inch) 26.97
Fork Size s/e/l (Inch) 1.97/5.91/48.03
Fork Width b5 (Inch) 26.97
Min.Ground clearance m2 (Inch) 1.38
Aisle width for pallets 39.37*47.24 crossways Ast (Inch) 73.78
Aisle width for pallets 31.5*47.24 lengthways Ast (Inch) 75.75
Turing Radius Wa (Inch) 57.8
Driving Speed,load/unload (km/h) 4.2/4.5
Maximum gradeability load/unload (%) 5/10
Brake Type Electromagnetic brake
Drive Motor (kW) 0.75
Lift Motor (kW) 0.8
Lithium LiFePO4 Battery voltage rate capacity (V/Ah) 24/30
Battery Weight(±5%) LBS 17
Type of drive control DC
Noise level (dB(A)) ‰¤70
Service Weight(with battery) LBS 345
